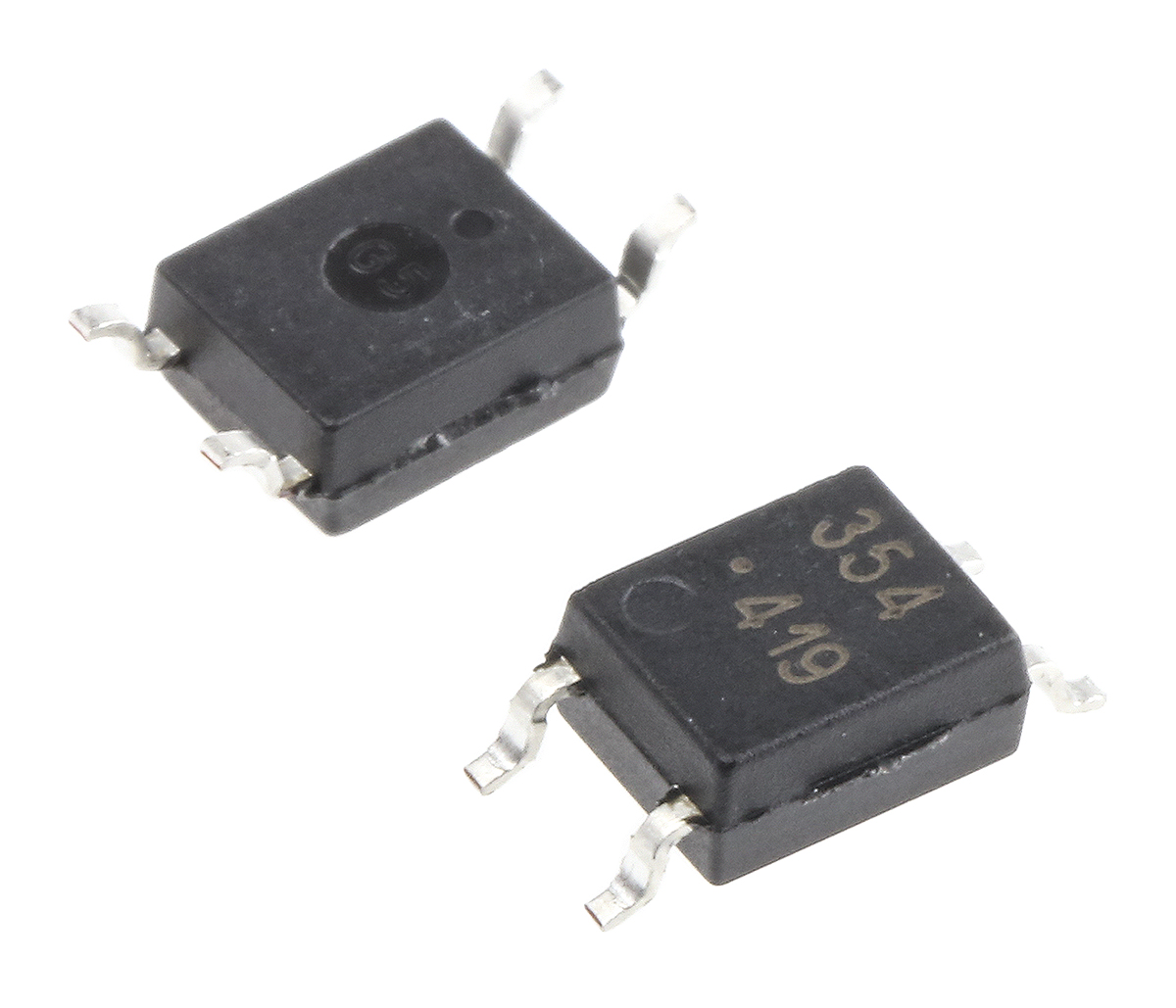

Broadcom HCPL-354-000E AC Input Transistor Output Optocoupler, Surface Mount, 4-Pin Mini-Flat

HCPL-354-000E Broadcom AC Input Transistor Output Optocoupler, Surface Mount, 4-Pin Mini-Flat
HCPL-354-000E Broadcom AC Input Transistor Output Optocoupler, Surface Mount, 4-Pin Mini-Flat
Broadcom

Product Information

Maximum Forward Voltage:
1.4V
Output Device:
Transistor
Isolation Voltage:
3750 V ac
Mounting Type:
Surface Mount
Series:
HCPL
Typical Rise Time:
4 μ
Minimum Current Transfer Ratio:
20%
Maximum Current Transfer Ratio:
400%
Input Current Type:
AC
Number of Pins:
4
Number of Channels:
1
Package Type:
Mini-Flat
Maximum Input Current:
50 mA
Typical Fall Time:
3µs
RoHs Compliant
Checking for live stock

The Broadcom HCPL-354-000E is a high-performance AC input phototransistor optocoupler designed in a compact 4-pin mini-flat SMD package. Featuring two light-emitting diodes connected in inverse parallel, this component allows for direct operation via AC input current while maintaining an impressive 3750 Vrms isolation voltage. Its subminiature design offers a 30% reduction in volume compared to traditional DIP packages, making it an ideal choice for space-constrained circuit board layouts requiring reliable signal isolation.

Why Should You Buy the Product?

This Broadcom HCPL-354-000E optocoupler provides superior signal integrity and high-voltage safety in a subminiature form factor that maximises PCB efficiency. It is the perfect solution for engineers needing robust AC signal monitoring without bulky components.

  • High isolation voltage of 3750 Vrms for enhanced safety.
  • Compact mini-flat package saves 30% more space than standard DIP types.
  • Direct AC input compatibility simplifies circuit design.

Feature Highlights & Applications Areas

  • Key Features:
  • AC input response with inverse parallel LEDs.
  • Minimum Current Transfer Ratio (CTR) of 20%.
  • Standard 2.0 mm low-profile mini-flat package.
  • Certified safety standards, including UL, CSA, and IEC/EN/DIN.
  • Uses:
  • Detecting or monitoring AC signals.
  • Programmable Logic Controllers (PLCs).
  • AC/DC input modules for industrial automation.
  • Isolating AC lines from digital logic circuits.
