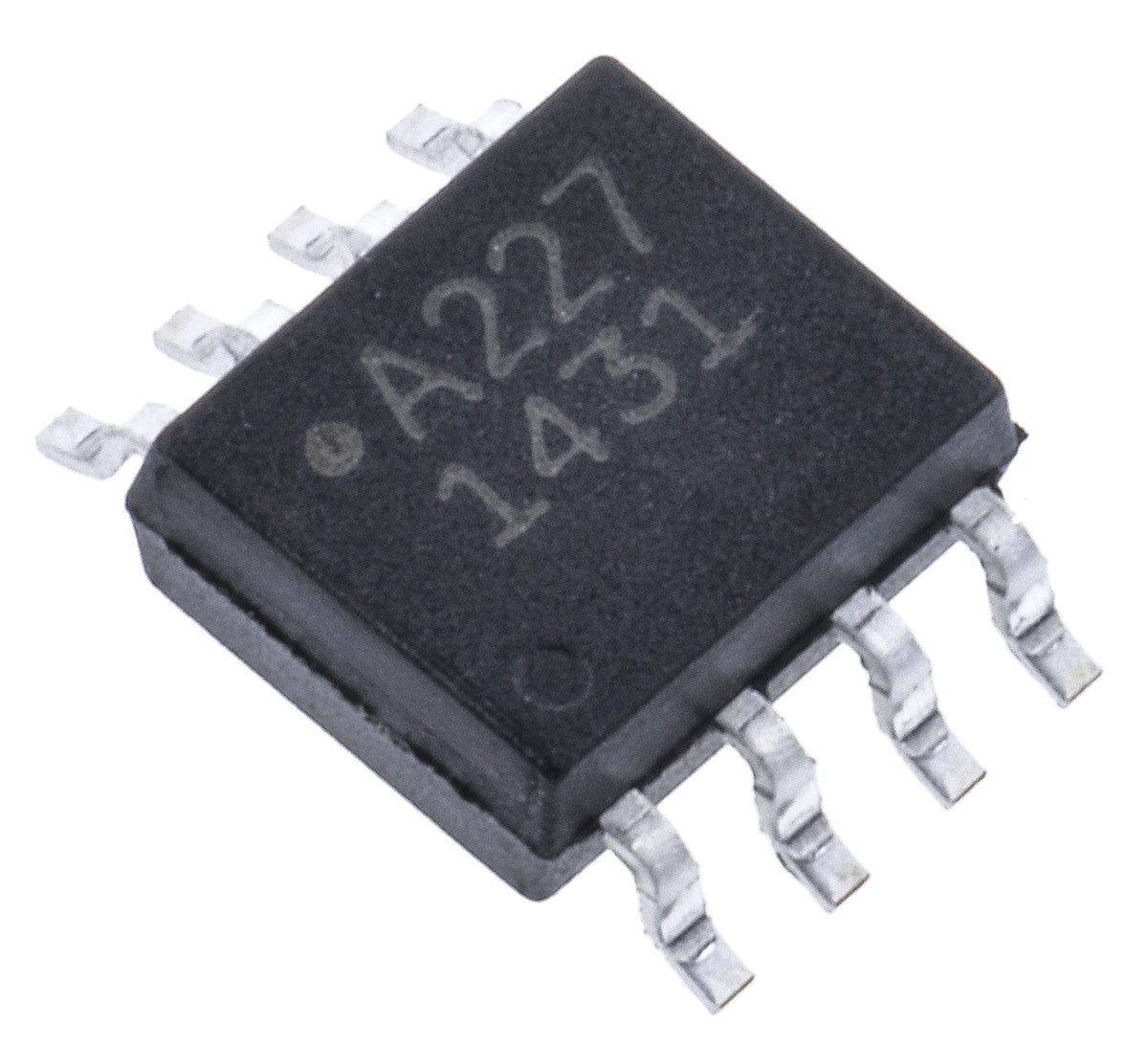

Broadcom ACPL-227-500E DC Input Transistor Output Dual Optocoupler, Surface Mount, 8-Pin SOIC

ACPL-227-500E Broadcom DC Input Transistor Output Dual Optocoupler, Surface Mount, 8-Pin SOIC
Broadcom

Product Information

Maximum Forward Voltage:
1.4V
Output Device:
Transistor
Isolation Voltage:
3000 V ac
Mounting Type:
Surface Mount
Series:
ACPL
Typical Rise Time:
2µs
Minimum Current Transfer Ratio:
50%
Maximum Current Transfer Ratio:
600%
Input Current Type:
DC
Number of Pins:
8
Number of Channels:
2
Package Type:
SOIC
Maximum Input Current:
50 mA
Typical Fall Time:
3µs
RoHs Compliant
Checking for live stock

This is DC Input Transistor Output Dual Optocoupler Surface Mount 8-Pin SOIC manufactured by Broadcom. The manufacturer part number is ACPL-227-500E. It also carries 1.4v of maximum forward voltage. Its output device includes transistor. It has 3000 v ac isolation voltage. The product is available in surface mount configuration. The product acpl, is a highly preferred choice for users. It has a typical 2µs rise time . In addition, it has a minimum 50% current transfer ratio . It has a maximum 600% current transfer ratio . Its input is of dc type . It is comprised of 8 pins. It is supplied with 2 channels. The package is a sort of soic. While its maximum input current includes 50 ma. It has a typical 3µs fall time .
