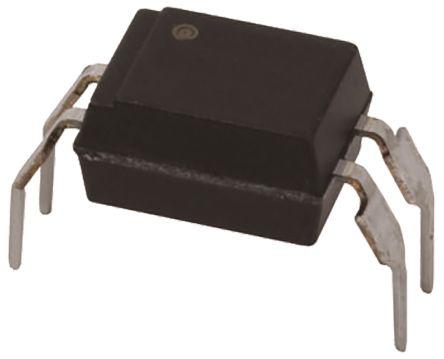

Toshiba TLP785(Y,F(C DC Input Phototransistor Output Optocoupler, Through Hole, 4-Pin DIP

TLP785-Y-F-C Toshiba TLP785(Y,F(C DC Input Phototransistor Output Optocoupler, Through Hole, 4-Pin DIP
Toshiba

Product Information

Maximum Forward Voltage:
1.3V
Output Device:
Phototransistor
Isolation Voltage:
5000 Vrms
Mounting Type:
Through Hole
Series:
TLP785
Typical Rise Time:
2µs
Minimum Current Transfer Ratio:
50%
Maximum Current Transfer Ratio:
150%
Input Current Type:
DC
Number of Pins:
4
Number of Channels:
1
Package Type:
DIP
Maximum Input Current:
60 (Forward Current) mA
Typical Fall Time:
3µs
RoHs Compliant
Checking for live stock

This is DC Input Phototransistor Output Optocoupler Through Hole 4-Pin DIP manufactured by Toshiba. The manufacturer part number is TLP785(Y,F(C. It also carries 1.3v of maximum forward voltage. Its output device includes phototransistor. It has 5000 vrms isolation voltage. The product is available in through hole configuration. The product tlp785, is a highly preferred choice for users. It has a typical 2µs rise time . In addition, it has a minimum 50% current transfer ratio . It has a maximum 150% current transfer ratio . Its input is of dc type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of dip. While its maximum input current includes 60 (forward current) ma. It has a typical 3µs fall time .

pdf icon
TLP785F Photocoupler Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TLP785(Y,F(C on website for other similar products.
We accept all major payment methods for all products including ET16915733. Please check your shopping cart at the time of order.
You can order Toshiba brand products with TLP785(Y,F(C directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optocoupler ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Toshiba TLP785(Y,F(C DC Input Phototransistor Output Optocoupler, Through Hole, 4-Pin DIP. You can also check on our website or by contacting our customer support team for further order details on Toshiba TLP785(Y,F(C DC Input Phototransistor Output Optocoupler, Through Hole, 4-Pin DIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16915733 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Toshiba" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16915733.
Yes. We ship TLP785(Y,F(C Internationally to many countries around the world.
