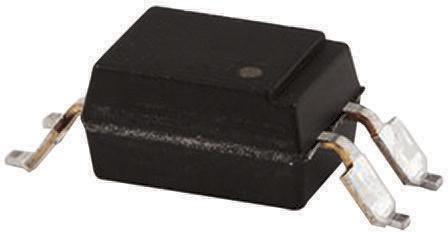

ISP815XSM Isocom, Optocoupler Photodarlington Output, 4-Pin SMD, Surface Mount

ISP815XSM Isocom, Optocoupler Photodarlington Output, 4-Pin SMD, Surface Mount
Isocom

Product Information

Maximum Forward Voltage:
1.4V
Output Device:
Photodarlington
Isolation Voltage:
3.75 kVrms, 5300 V Pk
Mounting Type:
Surface Mount
Series:
ISP815
Typical Rise Time:
60µs
Minimum Current Transfer Ratio:
600%
Maximum Current Transfer Ratio:
7500%
Number of Pins:
4
Number of Channels:
1
Package Type:
SMD
Maximum Input Current:
50 (Forward) mA
Typical Fall Time:
53µs
RoHs Compliant
Checking for live stock

This is Optocoupler Photodarlington Output 4-Pin SMD Surface Mount manufactured by Isocom. The manufacturer part number is ISP815XSM. It also carries 1.4v of maximum forward voltage. Its output device includes photodarlington. It has 3.75 kvrms, 5300 v pk isolation voltage. The product is available in surface mount configuration. The product isp815, is a highly preferred choice for users. It has a typical 60µs rise time . In addition, it has a minimum 600% current transfer ratio . It has a maximum 7500% current transfer ratio . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of smd. While its maximum input current includes 50 (forward) ma. It has a typical 53µs fall time .

pdf icon
1712969_DataSheet 1(Technical Reference)
