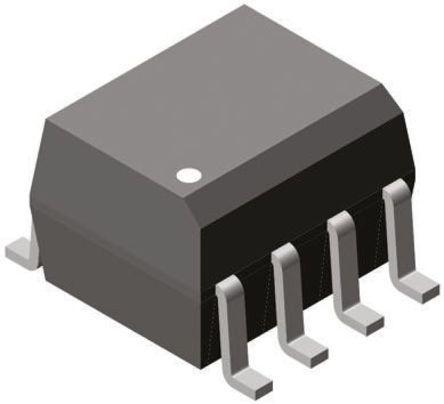

ON Semiconductor HCPL0501 DC Input Phototransistor Output Optocoupler, Surface Mount, 8-Pin SOIC

Enrgtech Part No: ET16727250
|
Manufacturer Part No:
HCPL0501
|
Manufacturer: ON Semiconductor

HCPL0501 ON Semiconductor DC Input Phototransistor Output Optocoupler, Surface Mount, 8-Pin SOIC

Product Information

Maximum Forward Voltage:

1.8V

Output Device:

Phototransistor

Isolation Voltage:

2.5 kVrms

Mounting Type:

Surface Mount

Typical Rise Time:

0.3µs

Maximum Current Transfer Ratio:

50%

Input Current Type:

Number of Pins:

Number of Channels:

Package Type:

SOIC

Maximum Input Current:

25 mA

Logic Output:

Yes

Checking for live stock

This is DC Input Phototransistor Output Optocoupler Surface Mount 8-Pin SOIC manufactured by ON Semiconductor. The manufacturer part number is HCPL0501. It also carries 1.8v of maximum forward voltage. Its output device includes phototransistor. It has 2.5 kvrms isolation voltage. The product is available in surface mount configuration. It has a typical 0.3µs rise time . It has a maximum 50% current transfer ratio . Its input is of dc type . It is comprised of 8 pins. It is supplied with 1 channels. The package is a sort of soic. While its maximum input current includes 25 ma. It includes a logic output yes . It has a typical 0.45µs fall time .

HCPL0452, HCPL0453, HCPL0500, HCPL0501, HCPL0530, HCPL0531, HCPL0534 High Speed Transistor Optocouplers(Technical Reference)
