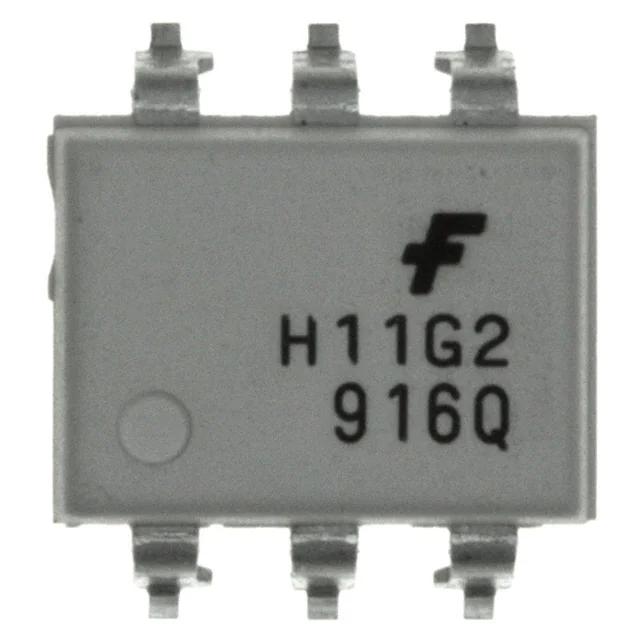

ON Semiconductor H11G2SR2M

H11G2SR2M ON Semiconductor
H11G2SR2M
ON Semiconductor

Product Information

Maximum Forward Voltage:
1.5V
Output Device:
Photodarlington
Isolation Voltage:
7.5 kVrms
Mounting Type:
Surface Mount
Typical Rise Time:
5µs
Maximum Current Transfer Ratio:
1000%
Input Current Type:
DC
Number of Pins:
6
Number of Channels:
1
Package Type:
MDIP
Maximum Input Current:
60 mA
Typical Fall Time:
100µs
Manufacturer Standard Lead Time:
12 Weeks
Base Part Number:
H11G
Detailed Description:
Optoisolator Darlington with Base Output 4170Vrms 1 Channel 6-SMD
Current Transfer Ratio (Min):
1000% @ 10mA
Mounting Type:
Surface Mount
Current - DC Forward (If) (Max):
60mA
Vce Saturation (Max):
1V
Output Type:
Darlington with Base
Supplier Device Package:
6-SMD
Packaging:
Cut Tape (CT)
Operating Temperature:
-40°C ~ 100°C
Turn On / Turn Off Time (Typ):
5µs, 100µs
Number of Channels:
1
Customer Reference:
Input Type:
DC
Package / Case:
6-SMD, Gull Wing
Voltage - Forward (Vf) (Typ):
1.3V
Voltage - Output (Max):
80V
Voltage - Isolation:
4170Vrms
Manufacturer:
ON Semiconductor
RoHs Compliant
Checking for live stock

This is manufactured by ON Semiconductor. The manufacturer part number is H11G2SR2M. It also carries 1.5v of maximum forward voltage. Its output device includes photodarlington. It has 7.5 kvrms isolation voltage. The product is available in surface mount configuration. It has a typical 5µs rise time . It has a maximum 1000% current transfer ratio . Its input is of dc type . It is comprised of 6 pins. It is supplied with 1 channels. The package is a sort of mdip. While its maximum input current includes 60 ma. It has a typical 100µs fall time . It has typical 12 weeks of manufacturer standard lead time. Base Part Number: h11g. It features optoisolator darlington with base output 4170vrms 1 channel 6-smd. It has a minimum current transfer ratio of 1000% @ 10ma. The maximum DC forward current of the product is 60ma. Feature a maximum Vce saturation of 1v. Furthermore, it has adarlington with base output. 6-smd is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. The product has -40°c ~ 100°c operating temperature range. The product has a typical turn On and Off time of 5µs, 100µs. It carries dc input type. Moreover, the product comes in 6-smd, gull wing. The typical forward voltage (Vf) of the product is 1.3v. While the maximum output voltage is 80v. 4170vrms of isolation voltage. The on semiconductor's product offers user-desired applications.

pdf icon
H11G1M, H11G2M, H11G3M, High Voltage Photodarlington Optocouplers Data Sheet(Technical Reference)
pdf icon
Logo 17/Aug/2017(PCN Design/Specification)
pdf icon
Mult Devices 24/Oct/2017(PCN Packaging)
