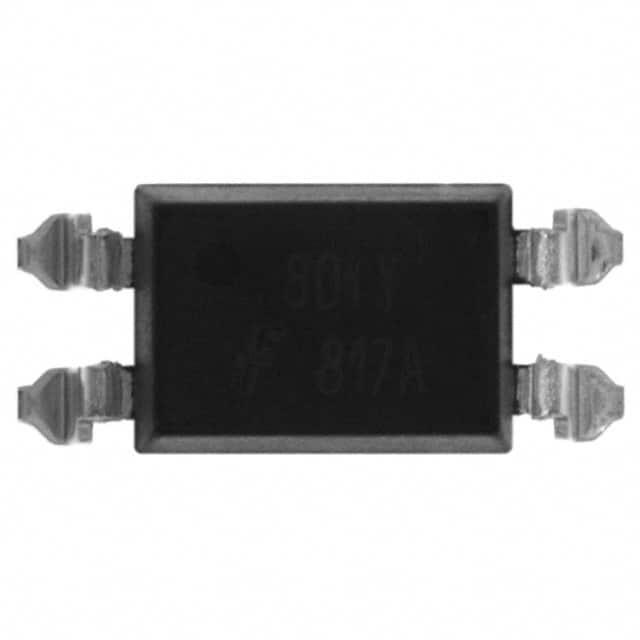

ON Semiconductor FOD817ASD
Product Information
Maximum Forward Voltage:
1.4V
Output Device:
Phototransistor
Isolation Voltage:
5000 V ac
Mounting Type:
Surface Mount
Typical Rise Time:
4µs
Minimum Current Transfer Ratio:
80 %
Maximum Current Transfer Ratio:
160%
Input Current Type:
DC
Number of Pins:
4
Number of Channels:
1
Package Type:
DIP
Maximum Input Current:
50 mA
Typical Fall Time:
3µs
Manufacturer Standard Lead Time:
28 Weeks
Detailed Description:
Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Vce Saturation (Max):
200mV
Operating Temperature:
-55°C ~ 110°C
Input Type:
DC
Package / Case:
4-SMD, Gull Wing
Base Part Number:
FOD817
Current Transfer Ratio (Min):
80% @ 5mA
Current Transfer Ratio (Max):
160% @ 5mA
Rise / Fall Time (Typ):
4µs, 3µs
Output Type:
Transistor
Current - DC Forward (If) (Max):
50mA
Number of Channels:
1
Voltage - Output (Max):
70V
Manufacturer:
ON Semiconductor
Current - Output / Channel:
50mA
Voltage - Forward (Vf) (Typ):
1.2V
Voltage - Isolation:
5000Vrms
Mounting Type:
Surface Mount
Supplier Device Package:
4-SMD
Packaging:
Cut Tape (CT)
Customer Reference:
Checking for live stock
FAQs
Yes. You can also search FOD817ASD on website for other similar products.
We accept all major payment methods for all products including ET14521841. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with FOD817ASD directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optocoupler ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor FOD817ASD. You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor FOD817ASD.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14521841 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14521841.
Yes. We ship FOD817ASD Internationally to many countries around the world.
This is manufactured by ON Semiconductor. The manufacturer part number is FOD817ASD. It also carries 1.4v of maximum forward voltage. Its output device includes phototransistor. It has 5000 v ac isolation voltage. The product is available in surface mount configuration. It has a typical 4µs rise time . In addition, it has a minimum 80 % current transfer ratio . It has a maximum 160% current transfer ratio . Its input is of dc type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of dip. While its maximum input current includes 50 ma. It has a typical 3µs fall time . It has typical 28 weeks of manufacturer standard lead time. It features optoisolator transistor output 5000vrms 1 channel 4-smd. Feature a maximum Vce saturation of 200mv. The product has -55°c ~ 110°c operating temperature range. It carries dc input type. Moreover, the product comes in 4-smd, gull wing. Base Part Number: fod817. It has a minimum current transfer ratio of 80% @ 5ma. Excellent efficiency with a maximum current transfer ratio of 160% @ 5ma. The typical rise and fall time of the product is 4µs, 3µs. Furthermore, it has atransistor output. The maximum DC forward current of the product is 50ma. While the maximum output voltage is 70v. The on semiconductor's product offers user-desired applications. It carries 50ma output or channel current. The typical forward voltage (Vf) of the product is 1.2v. 5000vrms of isolation voltage. 4-smd is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product.
