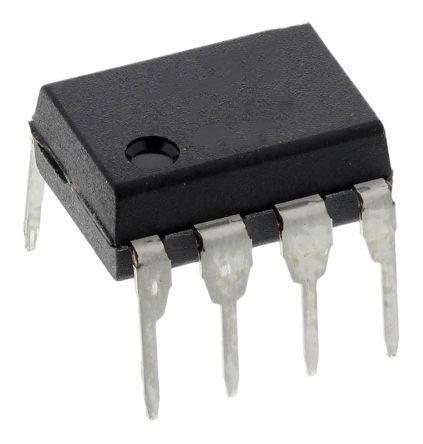

MAX406BCPA+ Maxim, Operational Amplifier, Op Amps, 40kHz 1 kHz, 2.5 → 10 V, 8-Pin DIP

MAX406BCPA- MAX406BCPA+ Maxim, Operational Amplifier, Op Amps, 40kHz 1 kHz, 2.5 → 10 V, 8-Pin DIP
Maxim

Product Information

Dimensions:
9.91 x 7.87 x 4.45mm
Typical Slew Rate:
20V/ms
Typical Gain Bandwidth Product:
40kHz
Width:
7.87mm
Maximum Operating Frequency:
1 kHz
Power Supply Type:
Single
Number of Channels per Chip:
1
Output Type:
Rail to Rail
Package Type:
DIP
Typical Voltage Gain:
1000 V/mV
Maximum Operating Temperature:
+70 °C
Length:
9.91mm
Pin Count:
8
Offset Voltage:
3mV
Typical Input Voltage Noise Density:
150nV/√Hz
Mounting Type:
Surface Mount
Output Current:
200 (Sink) μA, 600 (Source) μA
Input Voltage Range:
2.5 → 10 V
Typical Single Supply Voltage:
2.5 → 10 V
Height:
4.45mm
Minimum Operating Temperature:
0 °C
Amplifier Type:
Operational Amplifier
Maximum Input Voltage:
10 V
Minimum Input Voltage:
2.5 V
RoHs Compliant
Checking for live stock

This is Operational Amplifier Op Amps 40kHz 1 kHz 2.5 → 10 V 8-Pin DIP manufactured by Maxim. The manufacturer part number is MAX406BCPA+. The given dimensions of the product include 9.91 x 7.87 x 4.45mm. Furthermore, it has a typical 20v/ms of slew rate. Features 40khz typical gain bandwidth. Furthermore, the product is 7.87mm wide. It carries 1 khz of maximum operating frequency. It is a type of single power supply. It comprises 1 channels per chip. Furthermore, it has arail to rail output. The package is a sort of dip. Furthermore, its typical voltage gain includes 1000 v/mv. It has a maximum operating temperature of +70 °c. Its accurate length is 9.91mm. It contains 8 pins. Its offset voltage is approximately 3mv . Featuring a 150nv/√hz of typical input voltage noise density. The product is available in surface mount configuration. It carries 200 (sink) μa, 600 (source) μa output current. It has 2.5 → 10 v of input voltage range. It has a typical single supply voltage of 2.5 → 10 v. In addition, the height is 4.45mm. Whereas, the minimum operating temperature of the product is 0 °c. It is a sort of a operational amplifier amplifier. 10 v is the maximum voltage of the bespoke product. The product has 2.5 v of minimum input voltage.

pdf icon
MAX406BCPA+ - Datasheet(Technical Reference)
