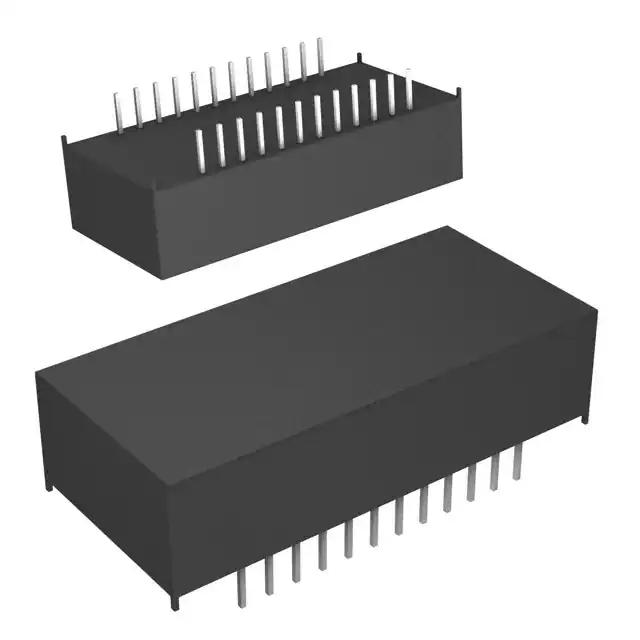

Maxim Integrated DS1220AD-100+
Product Information
Data Bus Width:
8bit
Dimensions:
34.04 x 18.29 x 9.4mm
Mounting Type:
Through Hole
Organisation:
2K x 8 bit
Minimum Operating Supply Voltage:
4.5 V
Height:
9.4mm
Width:
18.29mm
Length:
34.04mm
Memory Size:
16kbit
Package Type:
EDIP
Interface Type:
Parallel
Minimum Operating Temperature:
0 °C
Maximum Random Access Time:
100ns
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+70 °C
Pin Count:
24
HTSUS:
8542.32.0041
RoHS Status:
ROHS3 Compliant
Memory Interface:
Parallel
Write Cycle Time - Word, Page:
100ns
Operating Temperature:
0°C ~ 70°C (TA)
Memory Size:
16Kb (2K x 8)
Package / Case:
24-DIP Module (0.600", 15.24mm)
REACH Status:
REACH Affected
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
29 Weeks
Access Time:
100 ns
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
24-EDIP
Memory Type:
Non-Volatile
Voltage - Supply:
4.5V ~ 5.5V
ECCN:
EAR99
Technology:
NVSRAM (Non-Volatile SRAM)
Base Product Number:
DS1220
Memory Format:
NVSRAM
Checking for live stock
FAQs
Yes. You can also search DS1220AD-100+ on website for other similar products.
We accept all major payment methods for all products including ET10872030. Please check your shopping cart at the time of order.
You can order Maxim Integrated brand products with DS1220AD-100+ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in NVRAM category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Maxim Integrated DS1220AD-100+. You can also check on our website or by contacting our customer support team for further order details on Maxim Integrated DS1220AD-100+.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10872030 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Maxim Integrated" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10872030.
Yes. We ship DS1220AD-100+ Internationally to many countries around the world.
This is manufactured by Maxim Integrated. The manufacturer part number is DS1220AD-100+. Moreover, the data bus width includes 8bit. The given dimensions of the product include 34.04 x 18.29 x 9.4mm. The product is available in through hole configuration. The product has 2k x 8 bit organisation configuration. While its minimum operating supply voltage is 4.5 v. In addition, the height is 9.4mm. Furthermore, the product is 18.29mm wide. Its accurate length is 34.04mm. It holds a typical memory size of 16kbit. The package is a sort of edip. It is a type of parallel interface. Whereas, the minimum operating temperature of the product is 0 °c. The product exhibits a maximum 100ns random access time . It has 5.5 v maximum operating supply voltage. It has a maximum operating temperature of +70 °c. It contains 24 pins. It is assigned with possible HTSUS value of 8542.32.0041. The product is rohs3 compliant. It is a parallel memory interface. It allows a 100ns of write cycle time. The product has 0°c ~ 70°c (ta) operating temperature range. It holds a typical memory size of 16kb (2k x 8). Moreover, the product comes in 24-dip module (0.600", 15.24mm). In addition, it is reach affected. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 29 weeks standard lead time. It allows 100 ns access time. 24-edip is the supplier device package value. It is a type of non-volatile memory type. It has optimum voltage supply of 4.5v ~ 5.5v. The product is designated with the ear99 code number. This product use nvsram (non-volatile sram) technology. Moreover, it corresponds to ds1220, a base product number of the product. It is a sort of nvsram memory.
