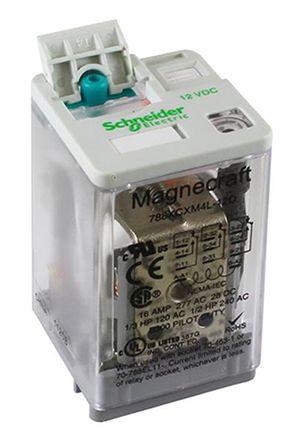

Schneider Electric 3PDT Plug In Non-Latching Relay, 125V dc Coil, 16 A

788XCXM4L-110D Schneider Electric 3PDT Plug In Non-Latching Relay, 125V dc Coil, 16 A
Schneider Electric

Product Information

Dimensions:
34.9 x 35.4 x 59.2mm
Coil Voltage:
125 V dc
Application:
General Purpose, Power
Coil Resistance:
10 kΩ
Life:
100000 (Electrical) Operations, 5000000 (Mechanical) Operations
Coil Power:
1.4W
Maximum Switching Voltage DC:
28V
Maximum Switching Power DC:
500 mW
Isolation Coil To Contact:
2.5kV rms
Maximum Operating Temperature:
+55°C
Terminal Type:
Quick Connect
Maximum Switching Current AC:
16 A
Operating Temperature Range:
-40 → +55°C
Contact Configuration:
3PDT
Depth:
35.4mm
Mounting Type:
Plug In
Length:
34.9mm
Height:
59.2mm
Maximum Switching Current DC:
16 A
Maximum Switching Voltage AC:
300V
Minimum Operating Temperature:
-40°C
Contact Material:
Silver Alloy
Checking for live stock

This is 3PDT Plug In Non-Latching Relay 125V dc Coil 16 A manufactured by Schneider Electric. The manufacturer part number is 788XCXM4L-110D. The given dimensions of the product include 34.9 x 35.4 x 59.2mm. The coil voltage of the product is 125 v dc. Applications Information involves general purpose, power. It holds up to 10 kω coil resistance. It is capable of doing 100000 (electrical) operations, 5000000 (mechanical) operations in a lifetime . Robust coil power of 1.4w. While it carries 28v of maximum DC switching voltage. It bears a maximum 500 mw of DC switching power. The product has 2.5kv rms isolation coil to contact. It has a maximum operating temperature of +55°c. The terminal is a quick connect type. It has a maximum 16 a switching current AC . The product has -40 → +55°c of operating temperature range. The contact is equipped with 3pdt configuration. The product comes in 35.4mm depth. The product is available in plug in configuration. Its accurate length is 34.9mm. In addition, the height is 59.2mm. It has a minimum 16 a DC switching current . It has a maximum AC switching voltage of 300v. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy silver alloy materials.
