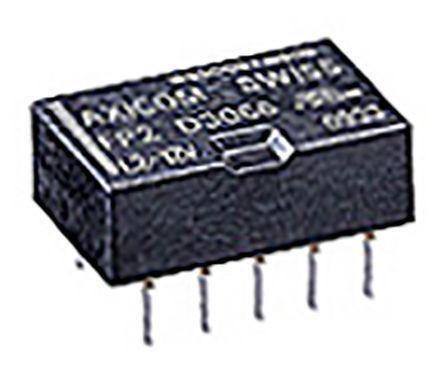

TE Connectivity DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 2 A

D3023 TE Connectivity DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 2 A
D3023 TE Connectivity DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 2 A
TE Connectivity

Product Information

Maximum Switching Voltage DC:
220V
Mounting Type:
PCB Mount
Coil Power:
80mW
Series:
FP2
Coil Voltage:
5 V dc
Length:
14mm
Height:
5mm
Depth:
9mm
Maximum Switching Voltage AC:
250V
Maximum Switching Power DC:
60 W
Maximum Switching Power AC:
62.5 VA
Isolation Coil To Contact:
1kV rms
Contact Configuration:
DPDT
Maximum Operating Temperature:
+85°C
Terminal Type:
PCB Pin
Coil Resistance:
313 Ω
RoHs Compliant
Checking for live stock

This is DPDT Non-Latching Relay PCB Mount 5V dc Coil 2 A manufactured by TE Connectivity. The manufacturer part number is D3023. While it carries 220v of maximum DC switching voltage. The product is available in pcb mount configuration. Robust coil power of 80mw. The product fp2, is a highly preferred choice for users. The coil voltage of the product is 5 v dc. Its accurate length is 14mm. In addition, the height is 5mm. The product comes in 9mm depth. It has a maximum AC switching voltage of 250v. It bears a maximum 60 w of DC switching power. It also features an AC switching power of 62.5 va. The product has 1kv rms isolation coil to contact. The contact is equipped with dpdt configuration. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. It holds up to 313 ω coil resistance.
