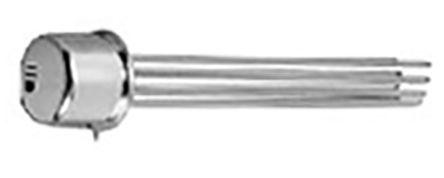

TE Connectivity SPDT Non-Latching Relay PCB Mount, 5V dc Coil, 1 A

J1MAPD-5XL TE Connectivity SPDT Non-Latching Relay PCB Mount, 5V dc Coil, 1 A
J1MAPD-5XL TE Connectivity SPDT Non-Latching Relay PCB Mount, 5V dc Coil, 1 A
TE Connectivity

Product Information

Maximum Switching Voltage DC:
28V
Mounting Type:
PCB Mount
Coil Power:
397mW
Coil Voltage:
5 V dc
Height:
7.1mm
Length:
8.5mm
Contact Configuration:
SPDT
Maximum Operating Temperature:
+125°C
Terminal Type:
PCB Pin
Coil Resistance:
63 Ω
Checking for live stock

This is SPDT Non-Latching Relay PCB Mount 5V dc Coil 1 A manufactured by TE Connectivity. The manufacturer part number is J1MAPD-5XL. While it carries 28v of maximum DC switching voltage. The product is available in pcb mount configuration. Robust coil power of 397mw. The coil voltage of the product is 5 v dc. In addition, the height is 7.1mm. Its accurate length is 8.5mm. The contact is equipped with spdt configuration. It has a maximum operating temperature of +125°c. The terminal is a pcb pin type. It holds up to 63 ω coil resistance.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship J1MAPD-5XL Internationally to many countries around the world.
Yes. You can also search J1MAPD-5XL on website for other similar products.
We accept all major payment methods for all products including ET13973147. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13973147 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13973147.
You can order TE Connectivity brand products with J1MAPD-5XL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Non-Latching Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity SPDT Non-Latching Relay PCB Mount, 5V dc Coil, 1 A. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity SPDT Non-Latching Relay PCB Mount, 5V dc Coil, 1 A.
