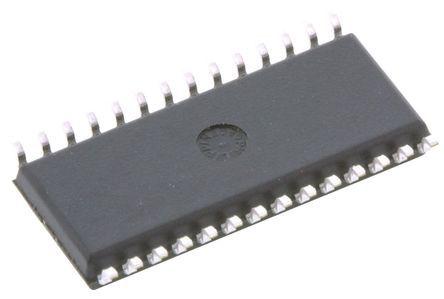

Renesas Electronics DG406DYZ, Multiplexer Single 16:1, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V, 28-Pin SOIC W

DG406DYZ Renesas Electronics , Multiplexer Single 16:1, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V, 28-Pin SOIC W
Intersil

Product Information

Output Signal Type:
Single Ended
Dimensions:
18.1 x 7.6 x 2.35mm
Mounting Type:
Surface Mount
Input Signal Type:
Single Ended
Power Supply Type:
Dual, Single
Number of Channels per Chip:
1
Multiplexer Architecture:
16:1
Height:
2.35mm
Typical Single Supply Voltage:
9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Width:
7.6mm
Length:
18.1mm
Package Type:
SOIC W
Typical Dual Supply Voltage:
±12 V, ±15 V, ±18 V, ±9 V
Minimum Operating Temperature:
-40 °C
Configuration:
Single 16:1
Maximum Operating Temperature:
+85 °C
Pin Count:
28
Switch Type:
Analogue Multiplexer
RoHs Compliant
Checking for live stock

This is Renesas Electronics Multiplexer Single 16:1 9 V 12 V 15 V 18 V 24 V 28 V 28-Pin SOIC W manufactured by Intersil. The manufacturer part number is DG406DYZ. The output signal is a kind of single ended. The given dimensions of the product include 18.1 x 7.6 x 2.35mm. The product is available in surface mount configuration. The input signal is a kind of single ended signal. It is a type of dual, single power supply. It comprises 1 channels per chip. However, it has 16:1 multiplexer architecture . In addition, the height is 2.35mm. It has a typical single supply voltage of 9 v, 12 v, 15 v, 18 v, 24 v, 28 v. Furthermore, the product is 7.6mm wide. Its accurate length is 18.1mm. The package is a sort of soic w. While ±12 v, ±15 v, ±18 v, ±9 v is the typical dual supply voltage. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in single 16:1 configuration. It has a maximum operating temperature of +85 °c. It contains 28 pins. Quality product with a analogue multiplexer switch type.

pdf icon
DG406, DG407, Single 16-Channel/Differential 8-Channel, CMOS Analog Multiplexers(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
