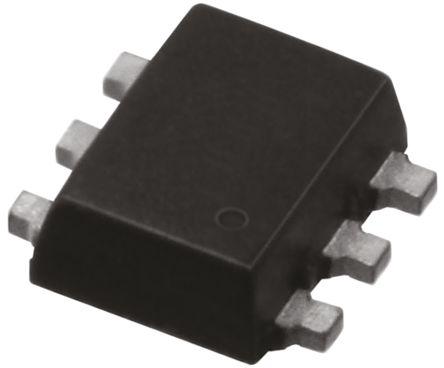

Vishay DG2011DXA-T1-E3, Analogue Switch Single SPDT, 1.8 → 5.5 V, 6-Pin SC-89

DG2011DXA-T1-E3 Vishay , Analogue Switch Single SPDT, 1.8 → 5.5 V, 6-Pin SC-89
Vishay

Product Information

Number of Outputs per Element:
2
Output Signal Type:
Single Ended
Dimensions:
1.7 x 1.3 x 0.6mm
Mounting Type:
Surface Mount
Input Signal Type:
Single Ended
Power Supply Type:
Single
Maximum Power Dissipation:
172 mW
Number of Channels per Chip:
1
Multiplexer Architecture:
1:2
Height:
0.6mm
Typical Single Supply Voltage:
1.8 → 5.5 V
Width:
1.3mm
Length:
1.7mm
Package Type:
SC-89
Minimum Operating Temperature:
-40 °C
Number of Inputs per Element:
1
Configuration:
Single SPDT
Maximum Operating Temperature:
+85 °C
Pin Count:
6
Switch Type:
Analogue
RoHs Compliant
Checking for live stock

This is Analogue Switch Single SPDT 1.8 → 5.5 V 6-Pin SC-89 manufactured by Vishay. The manufacturer part number is DG2011DXA-T1-E3. It includes 2 outputs per element . The output signal is a kind of single ended. The given dimensions of the product include 1.7 x 1.3 x 0.6mm. The product is available in surface mount configuration. The input signal is a kind of single ended signal. It is a type of single power supply. Provides up to 172 mw maximum power dissipation. It comprises 1 channels per chip. However, it has 1:2 multiplexer architecture . In addition, the height is 0.6mm. It has a typical single supply voltage of 1.8 → 5.5 v. Furthermore, the product is 1.3mm wide. Its accurate length is 1.7mm. The package is a sort of sc-89. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product has 1 input(s) per element . The product is available in single spdt configuration. It has a maximum operating temperature of +85 °c. It contains 6 pins. Quality product with a analogue switch type.

pdf icon
DG2011, Low-Voltage, Low RON, Single SPDT Analog Switch in SC-89 Package(Technical Reference)
