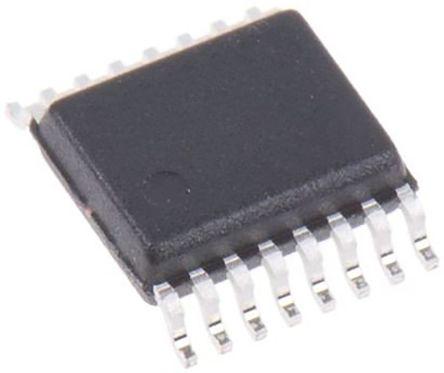

Maxim MAX4562EEE+, Analogue Switch Dual SPDT, Dual SPST, 2.7 → 5.5 V, 16-Pin QSOP

MAX4562EEE- Maxim MAX4562EEE+, Analogue Switch Dual SPDT, Dual SPST, 2.7 → 5.5 V, 16-Pin QSOP
MAX4562EEE+
Maxim

Product Information

Number of Outputs per Element:
1
Output Signal Type:
Single Ended
Dimensions:
4.98 x 3.99 x 1.55mm
Mounting Type:
Surface Mount
Input Signal Type:
Single Ended
Power Supply Type:
Single
Maximum Power Dissipation:
667 mW
Number of Channels per Chip:
4
Multiplexer Architecture:
1:2
Height:
1.55mm
Typical Single Supply Voltage:
2.7 → 5.5 V
Width:
3.99mm
Length:
4.98mm
Package Type:
QSOP
Minimum Operating Temperature:
-40 °C
Number of Inputs per Element:
2
Configuration:
Dual SPDT, Dual SPST
Maximum Operating Temperature:
+85 °C
Pin Count:
16
Switch Type:
Audio, Video
RoHs Compliant
Checking for live stock

This is Analogue Switch Dual SPDT Dual SPST 2.7 → 5.5 V 16-Pin QSOP manufactured by Maxim. The manufacturer part number is MAX4562EEE+. It includes 1 outputs per element . The output signal is a kind of single ended. The given dimensions of the product include 4.98 x 3.99 x 1.55mm. The product is available in surface mount configuration. The input signal is a kind of single ended signal. It is a type of single power supply. Provides up to 667 mw maximum power dissipation. It comprises 4 channels per chip. However, it has 1:2 multiplexer architecture . In addition, the height is 1.55mm. It has a typical single supply voltage of 2.7 → 5.5 v. Furthermore, the product is 3.99mm wide. Its accurate length is 4.98mm. The package is a sort of qsop. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product has 2 input(s) per element . The product is available in dual spdt, dual spst configuration. It has a maximum operating temperature of +85 °c. It contains 16 pins. Quality product with a audio, video switch type.

pdf icon
MAX4562/MAX4563, Serially Controlled, Clickless Audio/Video Switches Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
