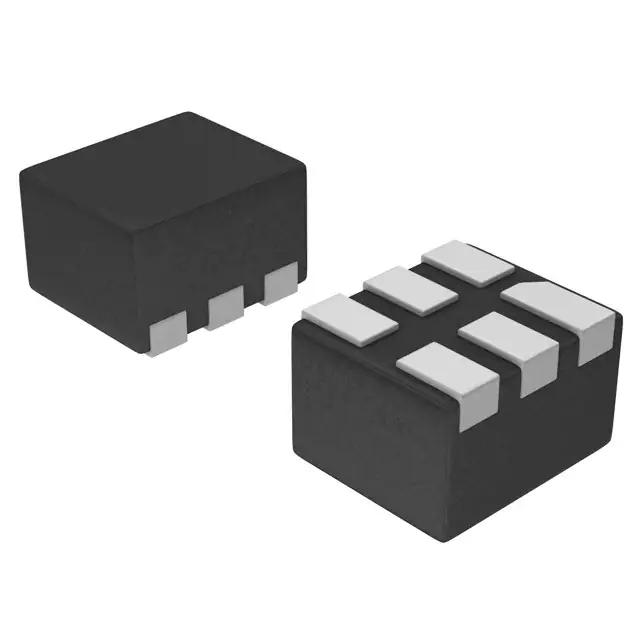

ON Semiconductor NLAS5123MNR2G
Product Information
Number of Outputs per Element:
2
Output Signal Type:
Single Ended
Dimensions:
1.2 x 1 x 0.75mm
Mounting Type:
Surface Mount
Input Signal Type:
Single Ended
Power Supply Type:
Single
Number of Channels per Chip:
1
Multiplexer Architecture:
1:2
Height:
0.75mm
Typical Single Supply Voltage:
1.65 → 5.5 V
Width:
1mm
Length:
1.2mm
Package Type:
WDFN
Minimum Operating Temperature:
-40 °C
Number of Inputs per Element:
1
Configuration:
Single SPDT
Maximum Operating Temperature:
+85 °C
Pin Count:
6
Switch Type:
Analogue
Detailed Description:
1 Circuit IC Switch 2:1 1Ohm 6-WDFN (1.2x1.0)
-3db Bandwidth:
55MHz
Operating Temperature:
-40°C ~ 85°C (TA)
Channel-to-Channel Matching (ΔRon):
120mOhm
Package / Case:
6-WFDFN
Switch Time (Ton, Toff) (Max):
20ns, 15ns
Current - Leakage (IS(off)) (Max):
2nA
Base Part Number:
NLAS5
Multiplexer/Demultiplexer Circuit:
2:1
Manufacturer:
ON Semiconductor
Channel Capacitance (CS(off), CD(off)):
20pF
Voltage - Supply, Single (V+):
1.65V ~ 4.5V
Switch Circuit:
SPDT
Number of Circuits:
1
Mounting Type:
Surface Mount
Crosstalk:
-70dB @ 1MHz
On-State Resistance (Max):
1Ohm
Supplier Device Package:
6-WDFN (1.2x1.0)
Charge Injection:
48pC
Packaging:
Cut Tape (CT)
Customer Reference:
Checking for live stock
FAQs
Yes. You can also search NLAS5123MNR2G on website for other similar products.
We accept all major payment methods for all products including ET12034866. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with NLAS5123MNR2G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiplexer Switch ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor NLAS5123MNR2G. You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor NLAS5123MNR2G.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12034866 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12034866.
Yes. We ship NLAS5123MNR2G Internationally to many countries around the world.
This is manufactured by ON Semiconductor. The manufacturer part number is NLAS5123MNR2G. It includes 2 outputs per element . The output signal is a kind of single ended. The given dimensions of the product include 1.2 x 1 x 0.75mm. The product is available in surface mount configuration. The input signal is a kind of single ended signal. It is a type of single power supply. It comprises 1 channels per chip. However, it has 1:2 multiplexer architecture . In addition, the height is 0.75mm. It has a typical single supply voltage of 1.65 → 5.5 v. Furthermore, the product is 1mm wide. Its accurate length is 1.2mm. The package is a sort of wdfn. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product has 1 input(s) per element . The product is available in single spdt configuration. It has a maximum operating temperature of +85 °c. It contains 6 pins. Quality product with a analogue switch type. It features 1 circuit ic switch 2:1 1ohm 6-wdfn (1.2x1.0). A 55mhz of bandwidth. The product has -40°c ~ 85°c (ta) operating temperature range. Features 120mohm of channel-to-channel matching. Moreover, the product comes in 6-wfdfn. Has a 20ns, 15ns maximum switch time. The maximum current leakage of the product included 2na. Base Part Number: nlas5. Ratio of multiplexer/demultiplexer circuit 2:1. The on semiconductor's product offers user-desired applications. Features 20pf channel capacitance. Single voltage supply of 1.65v ~ 4.5v. Features switch circuit of spdt. It integrates 1 circuits. A -70db @ 1mhz of crosstalk. It has a maximum on-state resistance of 1ohm. 6-wdfn (1.2x1.0) is the supplier device package value. It has 48pc charge injection parameters. In addition, cut tape (ct) is the available packaging type of the product.
