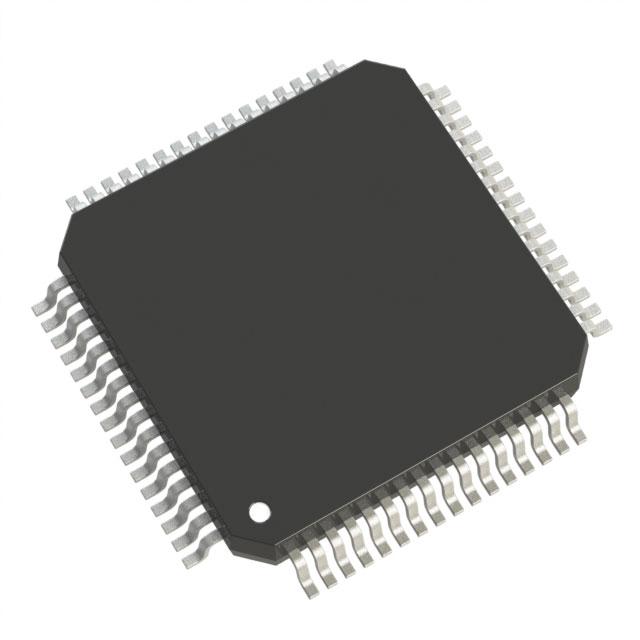

NXP USA Inc. MC34921AE
Product Information
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
0°C ~ 150°C (TJ)
Package / Case:
64-LQFP Exposed Pad
Function:
Driver - Fully Integrated, Control and Power Stage
Motor Type - AC, DC:
Brushed DC
Current - Output:
1.5A, 4.5A
REACH Status:
REACH Unaffected
edacadModel:
MC34921AE Models
Applications:
General Purpose
Interface:
Serial
Package:
Box
Moisture Sensitivity Level (MSL):
3 (168 Hours)
edacadModelUrl:
/en/models/1167252
Motor Type - Stepper:
Unipolar
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
0V ~ 38V
Supplier Device Package:
64-LQFP-EP (10x10)
Step Resolution:
-
Voltage - Supply:
4.8V ~ 5.2V
Output Configuration:
Half-Bridge (4), High-Side (2), Low-Side (1)
Technology:
Power MOSFET
Base Product Number:
MC34921
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search MC34921AE on website for other similar products.
We accept all major payment methods for all products including ET17477236. Please check your shopping cart at the time of order.
You can order NXP USA Inc. brand products with MC34921AE directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Motor Drivers, Controllers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP USA Inc. MC34921AE. You can also check on our website or by contacting our customer support team for further order details on NXP USA Inc. MC34921AE.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17477236 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NXP USA Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET17477236.
Yes. We ship MC34921AE Internationally to many countries around the world.
This is manufactured by NXP USA Inc.. The manufacturer part number is MC34921AE. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has 0°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 64-lqfp exposed pad. It performs basic function of driver - fully integrated, control and power stage. It is a robust brushed dc motor. While, the output current includes 1.5a, 4.5a. In addition, it is reach unaffected. The product is widely employed in general purpose. A bespoke product is serial interface. It is shipped in box package . Its typical moisture sensitivity level is 3 (168 hours). The stepper motor has a unipolar motor. The product is available in surface mount configuration. The given load voltage is 0v ~ 38v. 64-lqfp-ep (10x10) is the supplier device package value. It has optimum voltage supply of 4.8v ~ 5.2v. It boasts half-bridge (4), high-side (2), low-side (1) output configuration. This product use power mosfet technology. Moreover, it corresponds to mc34921, a base product number of the product. The product is designated with the ear99 code number.
