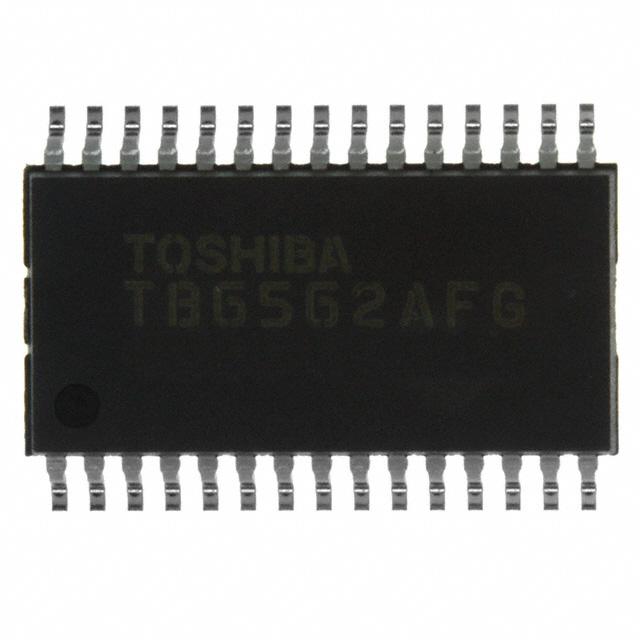

Toshiba Semiconductor and Storage TB6562AFG,8,EL

TB6562AFG-8-EL Toshiba Semiconductor and Storage TB6562AFG,8,EL
Toshiba Semiconductor and Storage

Product Information

HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-20°C ~ 85°C (TA)
Package / Case:
30-BSOP (0.295", 7.50mm Width)
Function:
Driver - Fully Integrated, Control and Power Stage
Motor Type - AC, DC:
-
Current - Output:
1.5A
REACH Status:
REACH Unaffected
edacadModel:
TB6562AFG,8,EL Models
Applications:
General Purpose
edacadModelUrl:
/en/models/1730058
Manufacturer:
Toshiba Semiconductor and Storage
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Interface:
Parallel
Motor Type - Stepper:
Bipolar
standardLeadTime:
28 Weeks
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
10V ~ 34V
Supplier Device Package:
30-SSOP
Packaging:
Tape & Reel (TR)
Step Resolution:
1, 1/2, 1/4
Voltage - Supply:
10V ~ 34V
Output Configuration:
Half Bridge (4)
Technology:
DMOS
Base Product Number:
TB6562
ECCN:
EAR99
Checking for live stock

This is manufactured by Toshiba Semiconductor and Storage. The manufacturer part number is TB6562AFG,8,EL. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -20°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in 30-bsop (0.295", 7.50mm width). It performs basic function of driver - fully integrated, control and power stage. While, the output current includes 1.5a. In addition, it is reach unaffected. The product is widely employed in general purpose. The toshiba semiconductor and storage's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). A bespoke product is parallel interface. The stepper motor has a bipolar motor. It has a long 28 weeks standard lead time. The product is available in surface mount configuration. The given load voltage is 10v ~ 34v. 30-ssop is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The product features 1, 1/2, 1/4 step resolution. It has optimum voltage supply of 10v ~ 34v. It boasts half bridge (4) output configuration. This product use dmos technology. Moreover, it corresponds to tb6562, a base product number of the product. The product is designated with the ear99 code number.
