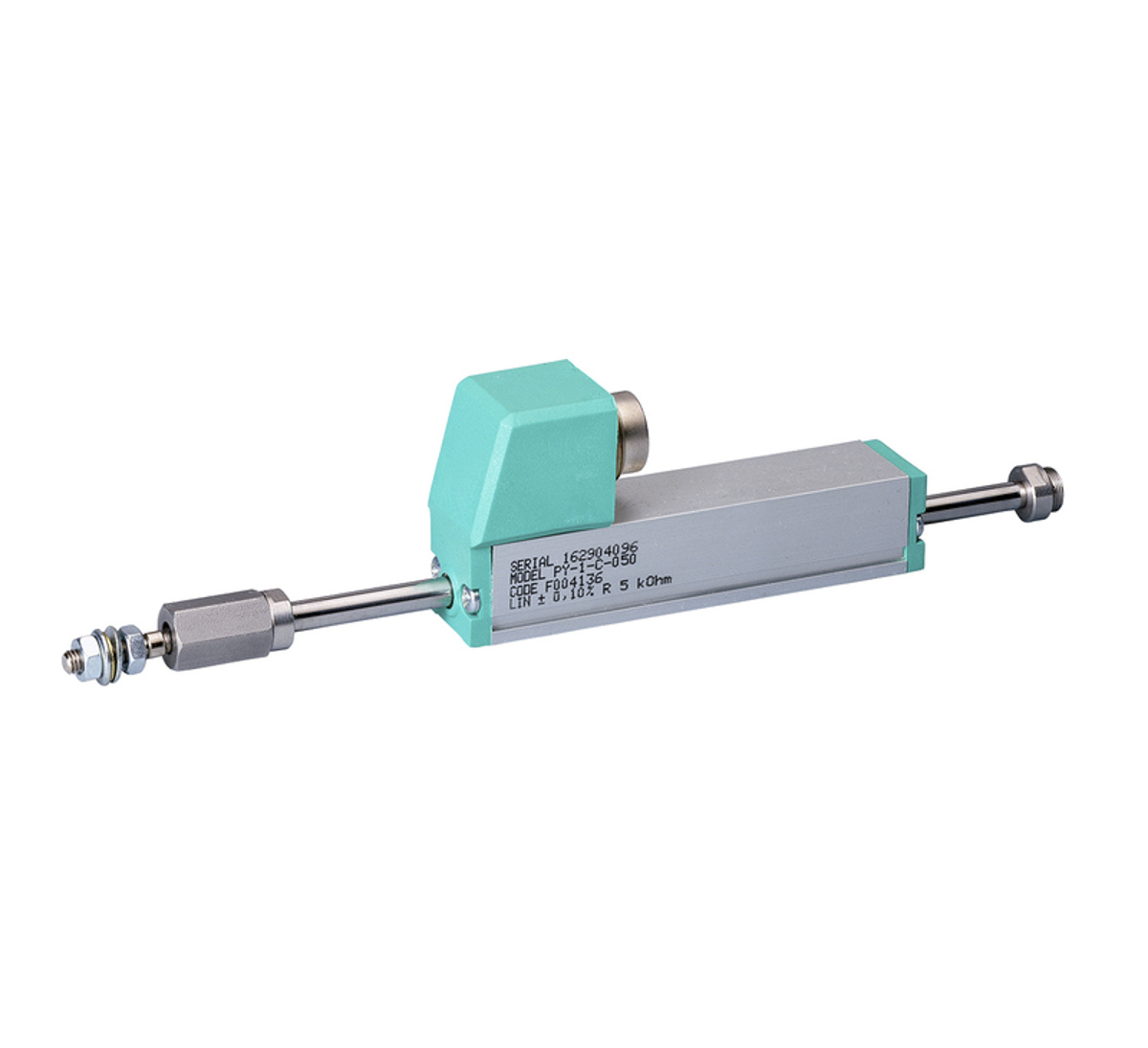

Gefran PY1 series linear position transducers Main characteristics: 50 mm stroke Mechanical linkage using joint with take up of play, M4 thread Independent linearity up to ±0.05% Infinite resolution Absence of electrical signal variation in output, outside the theoretical electrical stroke Maximum displacement speed 10m/s Operating temperature: -30 → 100°C 5-pole electrical connectors Life duration: >100 ´ 10 6 operations (within C.E.U.) Double support of the control rod Degree of protection IP40 Useful electrical stroke (C.E.U.) 50 Resolution Infinite Resistance tolerance ±20% Recommended cursor current Maximum cursor current ≤10mA Coeff. Termico della resistenza -200 ±200 ppm/°C Coeff. Termico effettivo della tensione d'uscita Electrical Insulation >100 Mohm at 500 V Dielectric strength >500 V eff. at 50 Hz Operating temperature -30°C → 100°C Storage temperature -50°C → 120°C Displacement speed ≤10 m/s Displacement force ≤0.30N Material transducer case Anodized aluminium Nylon 66 GF 40 Materiale costruttivo albero di trascinamento Stainless steel AISI 431 Fixture Brackets with adjustable distance between centres Electrical/mechanical features Model 50 Useful electrical stroke (C.E.U.) +1/-0 mm 50 Theoretical electrical stroke (C.E.T.) ±1 mm C.E.U. +1 Resistance (C.E.T.) kΩ 5 Independent linearity (within C.E.U.) ±% 0.1 Dissipation at 40°C (0 W at 120°C) W 1.2 Maximum applicable voltage V 60 Mechanical stroke (C.M.) mm C.E.U. +5 Case length (A) mm C.E.U. +38 Total length (B) mm 157
For more information please check the datasheets.
I am very satisfied with the Linear Transducer 50mm stroke 60 V IP40 from EnrgTech. It operates flawlessly, and the quality is impressive. The delivery was smooth, and the customer care team was very supportive. The professional sales team made the entire process easy. EnrgTech's website is my preferred choice for electronics.
