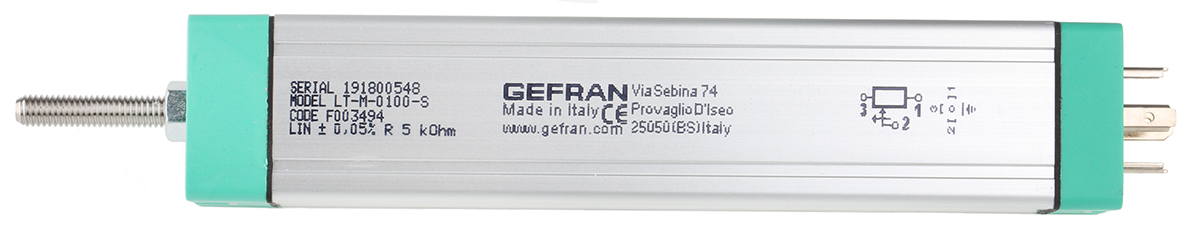

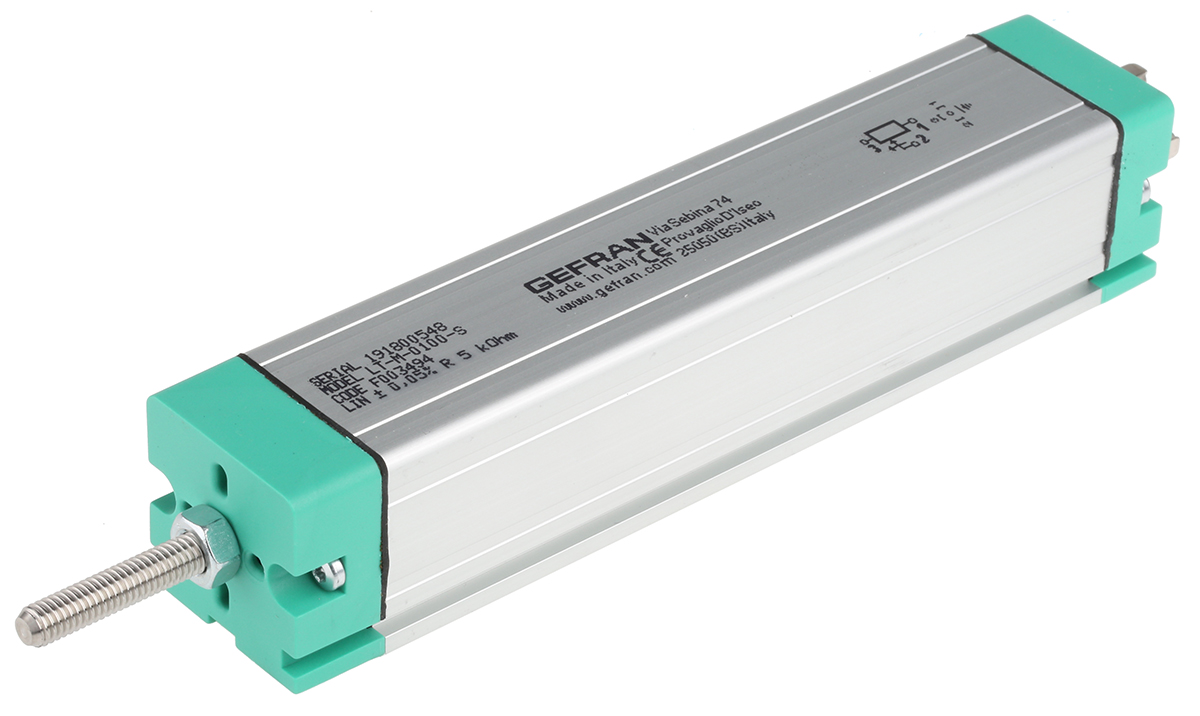

Gefran LT series linear position transducers Main characteristics: 50 → 900 mm strokes Pull shaft, M6 threaded Independent linearity: ±0.05% Infinite resolution Absence of electrical signal variation in output, outside the theoretical electrical stroke Maximum displacement speed 5 m/s Operating temperature: -30 → 100°C Electrical connections: 3-pole LTH connector 4-pole LTM connector DIN43650-ISO4400 Life duration: >25 ´ 10 6 m strokes, or >100 ´ 10 6 manoeuvres, whichever is less (within C.E.U.) Degree of protection IP60 Model 100 130 175 200 275 300 400 500 600 900 Useful electrical stroke mm 100 130 175 200 275 300 400 500 600 900 (C.E.U.) +3/-0 Theoretical electrical stroke mm C.E.U. +3 C.E.U. +4 406 508 609 914 (C.E.T.) ±1 Resistance (C.E.T.) KΩ 5 5 5 5 5 10 Mechanical stroke (C.M.) mm C.E.U. +9 C.E.U. +10 412 518 619 924 Case length (A) mm C.E.U. +62 C.E.U. +63 465 571 672 977 Useful electrical stroke (C.E.U.) 100/130/175/200/275/300/400/500/600/900 Independent linearity (within C.E.U.) ±0·0.05% Resolution Infinite Resistance tolerance ±20% Recommended cursor current Maximum cursor current ≤10mA Dissipation at 40°C (0 W at 120°C) 3 W Maximum applicable voltage 60 V Coeff. Termico della resistenza -200 ±200 ppm/°C Coeff. Termico effettivo della tensione d'uscita Electrical Insulation >100 Mohm at 500 V Dielectric strength >500 V eff at 50 Hz Operating temperature -30°C → 100°C Storage temperature -50°C → 120°C Displacement speed Standard ≤5 m/s Displacement force ≤2 N IP60 version Material transducer case Anodized aluminium Nylon 66 GF 40 Materiale costruttivo albero trascinamento Stainless steel AISI 431 Fixture Brackets with adjustable distance between centres
For more information please check the datasheets.
I recently purchased the Linear Transducer with a 100mm stroke from EnrgTech. The product works flawlessly, and the build quality is impressive. The professional sales team guided me through the selection process, ensuring I got the right product. The delivery was smooth and prompt. EnrgTech's website made the purchase process seamless and convenient. Highly recommend this product for precise linear measurements!
