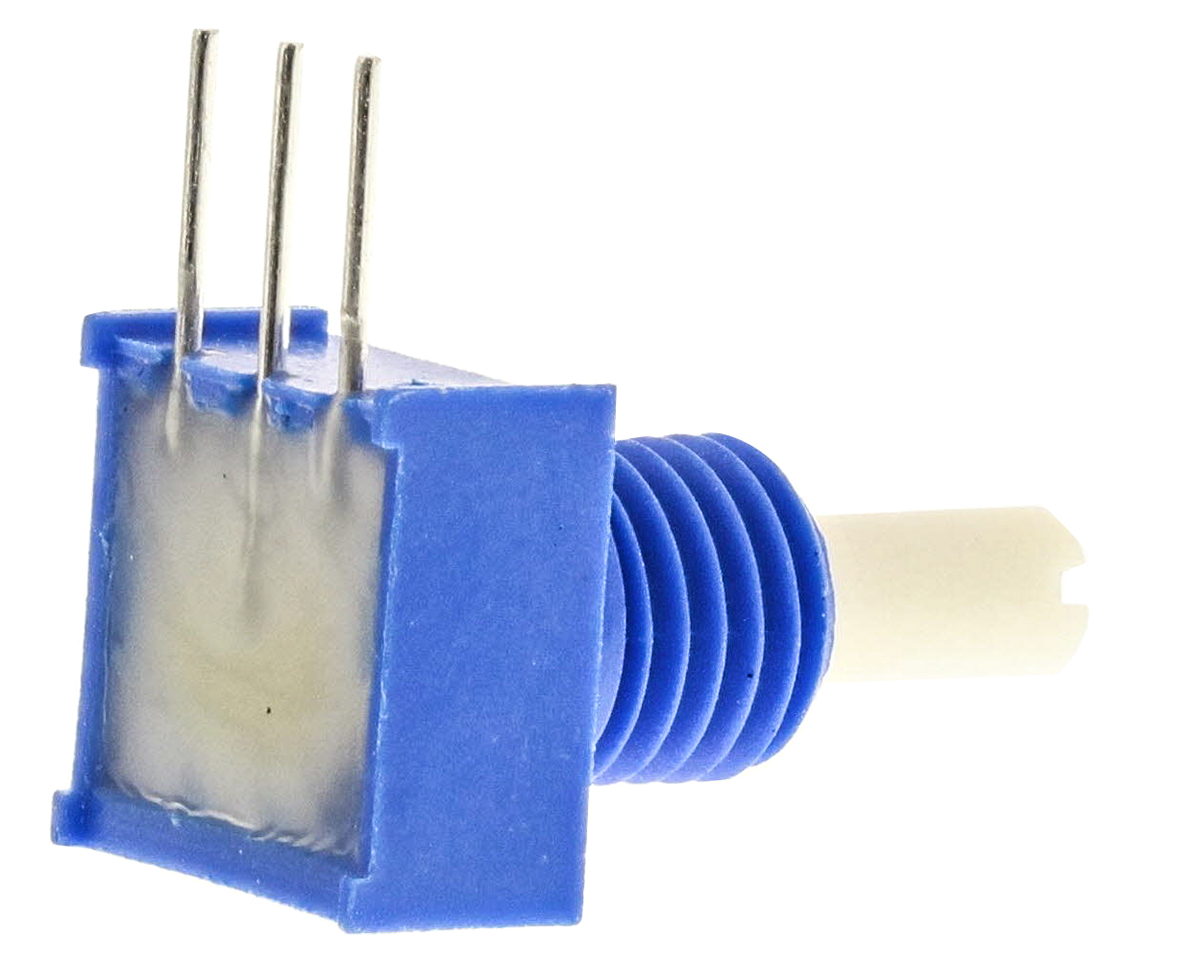

Bourns Incremental Encoder 16 ppr 120rpm Slotted

3315C-001-016L Bourns Incremental Encoder 16 ppr 120rpm Slotted
3315C-001-016L
Bourns

Product Information

Shaft Diameter:
1/4in
Output Signal Type:
Quadrature
Mounting Type:
Panel Mount
IP Rating:
IP67
Encoder Technology:
Incremental
Overall Width:
9.53mm
Shaft Type:
Solid
Minimum Operating Temperature:
-40°C
Maximum Revolutions:
120rpm
Overall Depth:
17.88mm
Maximum Operating Temperature:
+125°C
Resolution:
2 bit
Overall Height:
9.53mm
Pulses Per Revolution:
16
RoHs Compliant
Checking for live stock

This is Incremental Encoder 16 ppr 120rpm Slotted manufactured by Bourns. The manufacturer part number is 3315C-001-016L. The diameter of the shaft is 1/4in. The output signal is a kind of quadrature. The product is available in panel mount configuration. It is IP rated with ip67. It is created using incremental encoder technology . It has an overall width of 9.53mm. Additionally, the product has a solid type shaft . Whereas, the minimum operating temperature of the product is -40°c. It has a maximum 120rpm resolutions . Similarly, the product has 17.88mm of overall depth. It has a maximum operating temperature of +125°c. Features 2 bit resolution. Moreover, it has 9.53mm of overall height. It exhibits 16 pulses per resolution .

pdf icon
Datasheet(Technical Reference)
pdf icon
3315 - 9 mm Square Sealed Incremental Encoder Data Sheet(Technical Reference)
