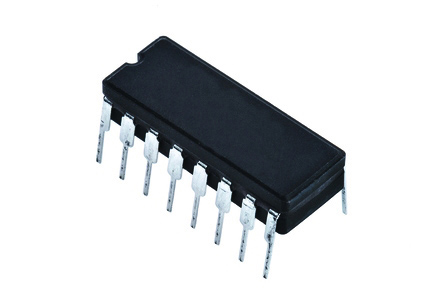

Texas Instruments SN54LS123J Dual Monostable Multivibrator 4mA, 4.5 → 5.5 V, 16-Pin CDIP
Product Information
Maximum Low Level Output Current:
4mA
Dimensions:
19.56 x 6.92 x 4.57mm
Mounting Type:
Through Hole
Maximum Propagation Delay Time @ Maximum CL:
56 ns @ 5 V
Minimum Operating Supply Voltage:
4.5 V
Maximum Quiescent Current:
12mA
Logic Function:
Monostable Multivibrator
Logic Family:
LS
Height:
4.57mm
Width:
6.92mm
Length:
19.56mm
Package Type:
CDIP
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Minimum Pulse Width:
40 ns
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+125 °C
Pin Count:
16
Maximum High Level Output Current:
-0.4mA
RoHS Status:
ROHS3 Compliant
Propagation Delay:
34 ns
Operating Temperature:
-55°C ~ 125°C
Package / Case:
16-CDIP (0.300", 7.62mm)
REACH Status:
REACH Unaffected
Independent Circuits:
2
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
54LS
Logic Type:
Monostable
Supplier Device Package:
16-CDIP
Voltage - Supply:
4.5 V ~ 5.5 V
Current - Output High, Low:
4mA, 400µA
Schmitt Trigger Input:
No
