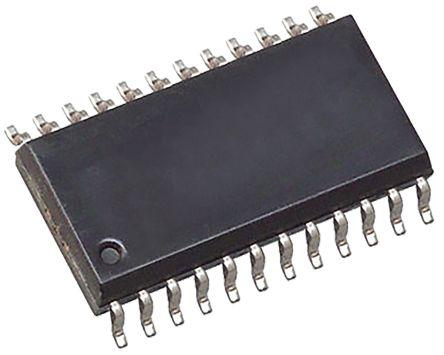

Analog Devices ADM206EARZ, Multichannel Line Transceiver, RS-232 4-TX 3-RX, 5 V, 24-Pin SOIC W

ADM206EARZ Analog Devices , Multichannel Line Transceiver, RS-232 4-TX 3-RX, 5 V, 24-Pin SOIC W
Analog Devices

Product Information

Maximum Operating Temperature:
+85 °C
Dimensions:
15.6 x 7.6 x 2.35mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Number of Transmitters:
4
Transmitter Signal Type:
Single Ended
Height:
2.35mm
Typical Single Supply Voltage:
5 V
Width:
7.6mm
Length:
15.6mm
Receiver Signal Type:
Single Ended
Package Type:
SOIC W
Minimum Operating Temperature:
-40 °C
Data Rate:
230kbps
Number of Receivers per Line:
1
Number of Drivers per Line:
1
Number of Receivers:
3
Interface Standards:
RS-232
Pin Count:
24
RoHs Compliant
Checking for live stock

This is Multichannel Line Transceiver RS-232 4-TX 3-RX 5 V 24-Pin SOIC W manufactured by Analog Devices. The manufacturer part number is ADM206EARZ. It has a maximum operating temperature of +85 °c. The given dimensions of the product include 15.6 x 7.6 x 2.35mm. The product is available in surface mount configuration. It is a type of single power supply. It includes 4 transmitters . Moreover, it exhibits single ended type transmitter signal . In addition, the height is 2.35mm. It has a typical single supply voltage of 5 v. Furthermore, the product is 7.6mm wide. Its accurate length is 15.6mm. In addition, it has single ended type receiver signal . The package is a sort of soic w. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximised data speed rate of 230kbps. Furthermore, it has 1 number of receivers per line . Whereas, it has 1 dedicated drivers per line . It contains 3 receivers . It complies with rs-232 interface standards . It contains 24 pins.

pdf icon
ADM206E/ADM207E/ADM208E/ADM211E/ADM213E EMI/EMC-Compliant, ±15 kV ESDProtected, RS-232 Line Drivers/Receivers Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
