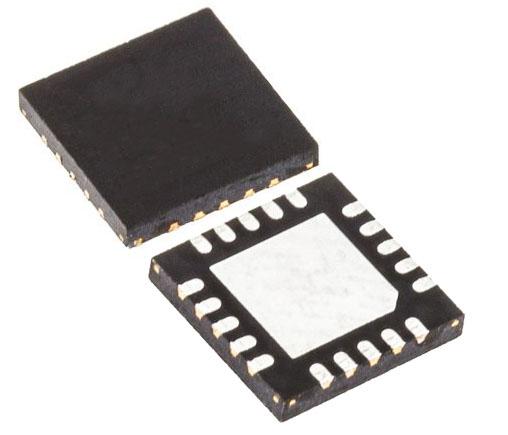

Maxim MAX3223EETP+, Line Transceiver, RS-232 2 (RS-232)-TX 2 (RS-232)-RX, 3 → 5.5 V, 20-Pin TQFN-EP

Enrgtech Part No: ET18611440
|
Manufacturer Part No:
MAX3223EETP+
|
Manufacturer: Maxim Integrated

MAX3223EETP- Maxim MAX3223EETP+, Line Transceiver, RS-232 2 (RS-232)-TX 2 (RS-232)-RX, 3 → 5.5 V, 20-Pin TQFN-EP

Product Information

Dimensions:

5 x 5 x 0.75mm

Mounting Type:

Surface Mount

Package Type:

TQFN-EP

IC Type:

Line Transceiver

Number of Transmitters:

2 (RS-232)

Pin Count:

HTSUS:

8542.39.0001

RoHS Status:

ROHS3 Compliant

Duplex:

Full

Number of Drivers/Receivers:

2/2

Receiver Hysteresis:

500 mV

Operating Temperature:

-40°C ~ 85°C

Checking for live stock

This is Maxim Line Transceiver RS-232 2 (RS-232)-TX 2 (RS-232)-RX 3 → 5.5 V 20-Pin TQFN-EP manufactured by Maxim Integrated. The manufacturer part number is MAX3223EETP+. The given dimensions of the product include 5 x 5 x 0.75mm. The product is available in surface mount configuration. The package is a sort of tqfn-ep. Additionally, it includes line transceiver type IC . It includes 2 (rs-232) transmitters . It contains 20 pins. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. Regarding duplex options, it is full. It also includes 2/2. Features 500 mv of receiver hysteresis. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 20-wqfn exposed pad. It comes in transceiver configuration. In addition, it is reach unaffected. It has a maximised data speed rate of 250kbps. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 42 weeks standard lead time. The product features a rs232 protocol. 20-tqfn (5x5) is the supplier device package value. It has optimum voltage supply of 3v ~ 5.5v. Moreover, it corresponds to max3223, a base product number of the product. The product is designated with the ear99 code number.

Datasheet - MAX3223EETP+(Technical Reference)

Maxim Integrated RoHS3 Cert(Environmental Information)

Red Phosphorous Certificate(Environmental Information)

Maxim Integrated REACH211(Environmental Information)

Part Numbering System(Part Numbering Guide)

MAX3221E/23E/43E(Datasheets)

Design Considerations for Data-Lump Cables(Mfg Application Notes)

Oops...Practical ESD Protection vs. Foolhardy Placebos(Mfg Application Notes)

Determining Clock Accuracy Requirements for UART Communications(Mfg Application Notes)

Reduce the Chances of Human Error: Part 2, Super Amps and Filters for Analog Interface(Mfg Application Notes)
