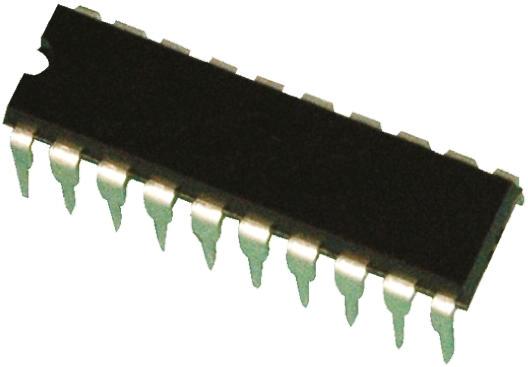

IC, 74 high speed CMOS logic, TC74HC540A
Product Information
Polarity:
Inverting
Maximum Low Level Output Current:
7.8mA
Dimensions:
24.6 x 6.4 x 3.5mm
Mounting Type:
Through Hole
Maximum Propagation Delay Time @ Maximum CL:
130 ns @ 2 V
Number of Channels per Chip:
8
Logic Function:
Buffer, Line Driver
Output Type:
3 State
Maximum High Level Output Current:
-7.8mA
Package Type:
PDIP
Logic Family:
HC
Input Type:
Single Ended
Maximum Operating Supply Voltage:
6 V
Minimum Operating Supply Voltage:
2 V
Pin Count:
20
Propagation Delay Test Condition:
150pF
Checking for live stock
FAQs
Yes. You can also search TC74HC540AP(F) on website for other similar products.
We accept all major payment methods for all products including ET16948178. Please check your shopping cart at the time of order.
You can order Toshiba brand products with TC74HC540AP(F) directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Line Interface ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of IC, 74 high speed CMOS logic, TC74HC540A. You can also check on our website or by contacting our customer support team for further order details on IC, 74 high speed CMOS logic, TC74HC540A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16948178 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Toshiba" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16948178.
Yes. We ship TC74HC540AP(F) Internationally to many countries around the world.
This is IC 74 high speed CMOS logic TC74HC540A manufactured by Toshiba. The manufacturer part number is TC74HC540AP(F). While providing inverting polarity. On the other hand, it is featured with 7.8ma of max. low level output current. The given dimensions of the product include 24.6 x 6.4 x 3.5mm. The product is available in through hole configuration. It provides up to 130 ns @ 2 v maximum propagation delay time. It comprises 8 channels per chip. The primary function of logic includes buffer, line driver. Furthermore, it has a3 state output. While a -7.8ma of maximum high level output current. The package is a sort of pdip. The logic family is hc. It carries single ended input type. It has 6 v maximum operating supply voltage. While its minimum operating supply voltage is 2 v. It contains 20 pins. Features 150pf of propagation delay test condition.
