Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo

Manufacturer : OSRAM Opto Semiconductors
Manufacturer Part No : LA P47B-S2U1-24-1
Enrgtech Part No : ET13910268
Product Range : PolySwitch RXEF Series

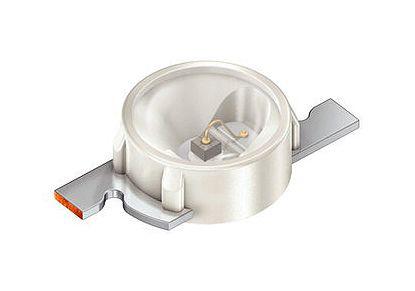

Osram Opto PointLED 617 nm Amber LED, SMD package

OSRAM PointLED Series LEDs The POINTLED series of LEDs, from Osram Opto Semiconductors, has a diameter of only 2mm so fits easily into a simple drill hole to sit flat against the PCB. Featuring a symmetrical radiation pattern, these versatile LEDs are ideal for applications such as: keypad illumination, display backlighting, coupling to light guides or automotive interior lighting. 2mm diameter package size Viewing angle 120° Reverse through-hole mount ideal for flat backlight (stock no. 654-6164 is Top mount) Note Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.

Product Information

Lens Colour : Clear
Dominant Wavelength : 617 nm
Dimensions : 2mm
Mounting Type : Surface Mount
Series : PointLED
Luminous Flux : 1.2 lm
Viewing Angle : 120 °
Forward Voltage : 2.1 V
Luminous Intensity : 560 mcd
Number of Pins : 2
Number of LEDs : 1
LED Colours : Amber
Lens Shape : Round
rohs : RoHS Certificate of Compliance

Technical Documents

  • LA P47B PointLED Enhanced optical Power LED (HOP2000) Data Sheet (Technical Reference)
  • LED Designation System (Technical Reference)

Availability:
740
in stock
Check now

Rate:
  • 20
    +
    £ 0.078

Qty:
