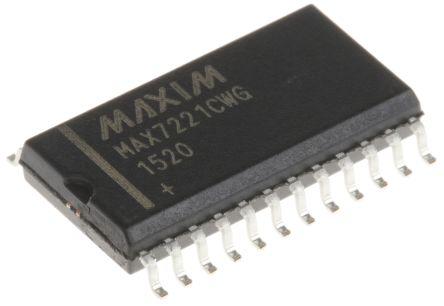

Maxim MAX7221CWG+, LED Driver, 8-Digits 64-Segments, 5 V, 24-Pin SOIC W

MAX7221CWG- Maxim MAX7221CWG+, LED Driver, 8-Digits 64-Segments, 5 V, 24-Pin SOIC W
Maxim

Product Information

Dimensions:
15.6 x 7.6 x 2.35mm
Mounting Type:
Surface Mount
Number of Digits:
8
Number of Segments:
64
Matching:
3%
Typical Operating Supply Voltage:
5 V
Width:
7.6mm
Length:
15.6mm
Package Type:
SOIC W
Minimum Operating Temperature:
0 °C
Maximum Supply Current:
330 mA
Height:
2.35mm
Maximum Operating Temperature:
+70 °C
Pin Count:
24
RoHs Compliant
Checking for live stock

This is LED Driver 8-Digits 64-Segments 5 V 24-Pin SOIC W manufactured by Maxim. The manufacturer part number is MAX7221CWG+. The given dimensions of the product include 15.6 x 7.6 x 2.35mm. The product is available in surface mount configuration. It contains 8 digits . It includes 64 segments . It has 3% matching . It has 5 v of typical operating supply voltage. Furthermore, the product is 7.6mm wide. Its accurate length is 15.6mm. The package is a sort of soic w. Whereas, the minimum operating temperature of the product is 0 °c. Moreover, it has a maximum 330 ma supply current . In addition, the height is 2.35mm. It has a maximum operating temperature of +70 °c. It contains 24 pins.

pdf icon
MAX3311E/MAX3313E ±15kV ESD-Protected, 460kbps, 1μA, RS-232-Compatible Transceivers in μMAX Data Sheet(Technical Reference)
pdf icon
MAX7219/MAX7221 Serially Interfaced, 8-Digit LED Display Drivers Data Sheet(Technical Reference)
