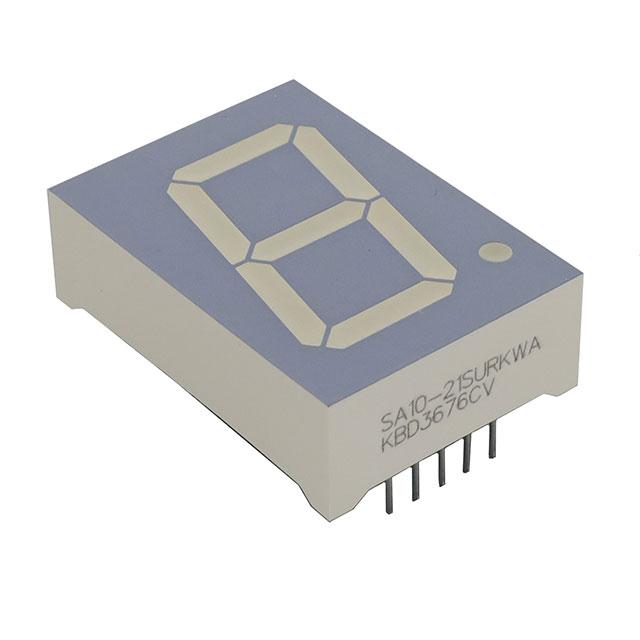

Kingbright SA10-21SURKWA
Product Information
External Dimensions:
10.5 x 24 x 34mm
Display Type:
7-Segment
Colour of Face:
Grey
Mounting Type:
Through Hole
Operating Temperature Range:
-40 → +85°C
Common Connection:
Anode
Number of Segments:
7
Character Height:
25.4mm
External Depth:
34mm
Character Width:
14mm
Luminous Intensity:
260 mcd
Number of Characters:
1
Minimum Operating Temperature:
-40°C
LED Colours:
Red
Decimal Orientation:
Right Side
External Height:
10.5mm
External Width:
24mm
Maximum Operating Temperature:
+85°C
HTSUS:
8541.41.0000
RoHS Status:
ROHS3 Compliant
Millicandela Rating:
260mcd
Package / Case:
10-DIP (1.197", 30.40mm)
Current - Test:
20mA
REACH Status:
REACH Unaffected
edacadModel:
SA10-21SURKWA Models
Wavelength - Peak:
645nm
edacadModelUrl:
/en/models/4098492
Package:
Tube
Digit/Alpha Size:
1.00" (25.40mm)
Common Pin:
Common Anode
Size / Dimension:
1.339" H x 0.551" W x 0.413" D (34.00mm x 14.00mm x 10.50mm)
Power Dissipation (Max):
75mW
Number of Characters:
1
Voltage - Forward (Vf) (Typ):
1.95V
standardLeadTime:
8 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Display Type:
7-Segment
Color:
Red
Series:
-
Base Product Number:
SA10-21
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search SA10-21SURKWA on website for other similar products.
We accept all major payment methods for all products including ET12579525. Please check your shopping cart at the time of order.
You can order Kingbright brand products with SA10-21SURKWA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in LED Character and Numeric category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Kingbright SA10-21SURKWA. You can also check on our website or by contacting our customer support team for further order details on Kingbright SA10-21SURKWA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12579525 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Kingbright" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12579525.
Yes. We ship SA10-21SURKWA Internationally to many countries around the world.
This is manufactured by Kingbright. The manufacturer part number is SA10-21SURKWA. Features 10.5 x 24 x 34mm external caliber. It features a remarkable 7-segment display. It is created with a grey colour face . The product is available in through hole configuration. The product has -40 → +85°c of operating temperature range. It has a common anode connection . It includes 7 segments . It has a standard 25.4mm character in height . It has an external depth of 34mm. In addition, it has about 14mm character width . It has 260 mcd of luminous intensity. Consists of 1 characters. Whereas, the minimum operating temperature of the product is -40°c. The LED has a classic red colours. Its decimal orientation is to the right side . While its external height is 10.5mm. The product is 24mm wide. It has a maximum operating temperature of +85°c. It is assigned with possible HTSUS value of 8541.41.0000. The product is rohs3 compliant. On the other hand, 260mcd is the millicandela rating of the bespoke product. Moreover, the product comes in 10-dip (1.197", 30.40mm). The given current test of the product is [Current -Test]. In addition, it is reach unaffected. The peak wavelength of the product is 645nm. It is shipped in tube package . It has a [Digital/Alpha Size] of digital/alpha size. The common anode is the common pin of the product. The product's diameters include 1.339" h x 0.551" w x 0.413" d (34.00mm x 14.00mm x 10.50mm). The product carries maximum power dissipation 75mw. The typical forward voltage (Vf) of the product is 1.95v. It has a long 8 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). It has a classic red colour. Moreover, it corresponds to sa10-21, a base product number of the product. The product is designated with the ear99 code number.
