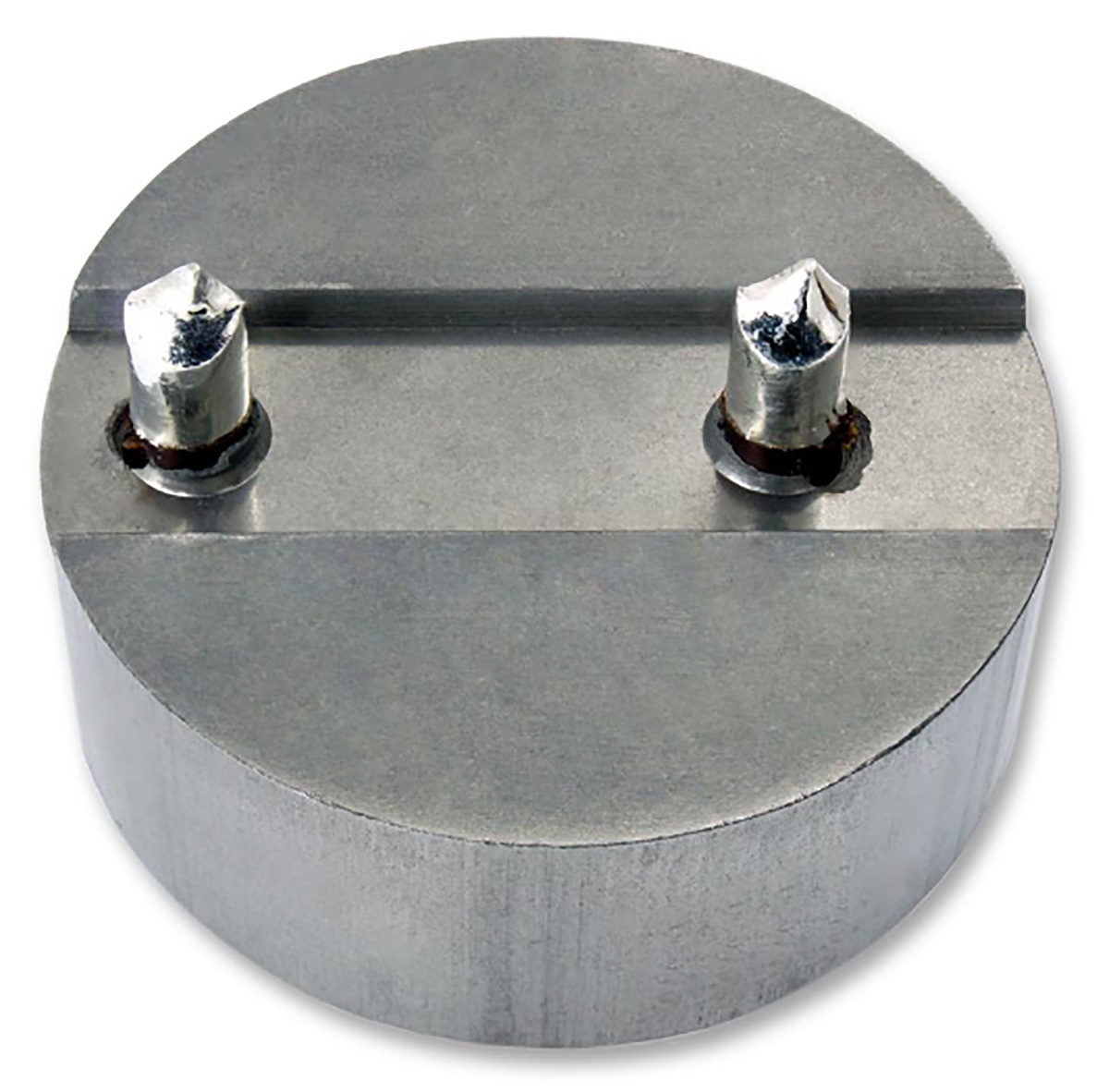

Vishay 22 μH ±20% Leaded Inductor, Max SRF:5.61MHz, 21A Idc, 6.83mΩ Rdc IHTH-1125KZ-5A

IHTH1125KZEB220M5A Vishay 22 μH ±20% Leaded Inductor, Max SRF:5.61MHz, 21A Idc, 6.83mΩ Rdc IHTH-1125KZ-5A
IHTH1125KZEB220M5A
Vishay

Product Information

Diameter:
28.5mm
Dimensions:
28.5 (Dia.) x 10.7mm
Lead Diameter:
1.6mm
Maximum DC Resistance:
6.83mΩ
Maximum DC Current:
21A
Series:
IHTH-1125KZ-5A
Minimum Operating Temperature:
-55°C
Height:
10.7mm
Inductance:
22 μH
Maximum Self Resonant Frequency:
5.61MHz
Mounting Type:
Radial
Lead Pitch:
17.6mm
Maximum Operating Temperature:
+155°C
Tolerance:
±20%
Terminal Type:
Through Hole
RoHs Compliant
Checking for live stock

This is 22 μH ±20% Leaded Inductor Max SRF:5.61MHz 21A Idc 6.83mΩ Rdc IHTH-1125KZ-5A manufactured by Vishay. The manufacturer part number is IHTH1125KZEB220M5A. Its diameter is 28.5mm. The given dimensions of the product include 28.5 (dia.) x 10.7mm. Furthermore, the lead has 1.6mm diameter. It allows up to 6.83mω maximum DC resistance. While it carries 21a of maximum DC current. The product ihth-1125kz-5a, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. In addition, the height is 10.7mm. The product has a 22 μh inductance value. It provides 5.61mhz of maximum self-resonant frequency. The product is available in radial configuration. The lead features 17.6mm pitch. It has a maximum operating temperature of +155°c. It features ±20% of tolerance value. The terminal is a through hole type.

pdf icon
Vishay High Current Through Hole Inductor Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search IHTH1125KZEB220M5A on website for other similar products.
We accept all major payment methods for all products including ET16722517. Please check your shopping cart at the time of order.
You can order Vishay brand products with IHTH1125KZEB220M5A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Leaded Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay 22 μH ±20% Leaded Inductor, Max SRF:5.61MHz, 21A Idc, 6.83mΩ Rdc IHTH-1125KZ-5A. You can also check on our website or by contacting our customer support team for further order details on Vishay 22 μH ±20% Leaded Inductor, Max SRF:5.61MHz, 21A Idc, 6.83mΩ Rdc IHTH-1125KZ-5A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16722517 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16722517.
Yes. We ship IHTH1125KZEB220M5A Internationally to many countries around the world.
