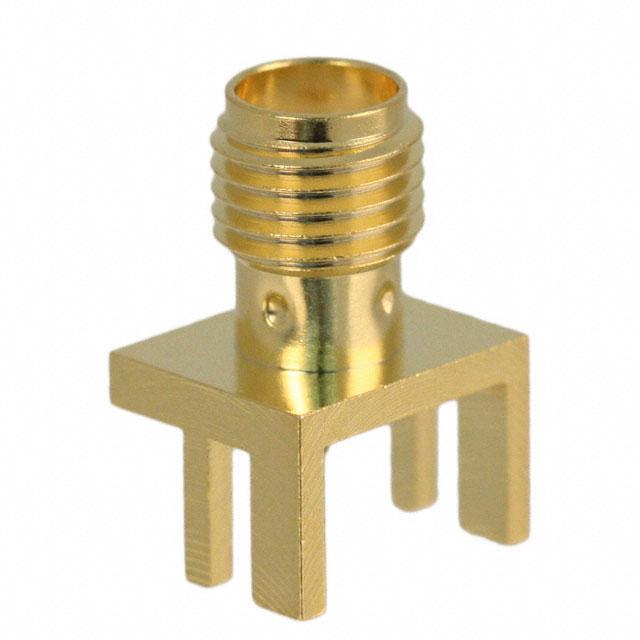

Amphenol RF 901-10309

901-10309 Amphenol RF
901-10309
Amphenol RF

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SMA
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
8 Weeks
Shield Termination:
Solder
REACH Status:
REACH Affected
Includes:
-
edacadModel:
901-10309 Models
Frequency - Max:
18 GHz
Housing Color:
Gold
edacadModelUrl:
/en/models/2254083
Impedance:
50 Ohms
Cable Group:
-
Package:
Bulk
Connector Type:
Receptacle, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
100
Ingress Protection:
-
Features:
-
Mounting Type:
Board Edge, End Launch
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder Tab
Base Product Number:
901-10
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 901-10309. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in sma connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 8 weeks standard lead time. It has a solder shield termination. In addition, it is reach affected. It maximum frequency is 18 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. It is shipped in bulk package . receptacle, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 100. The product is available in board edge, end launch configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder tab contact terminals. Moreover, it corresponds to 901-10, a base product number of the product. The product is designated with the ear99 code number.
