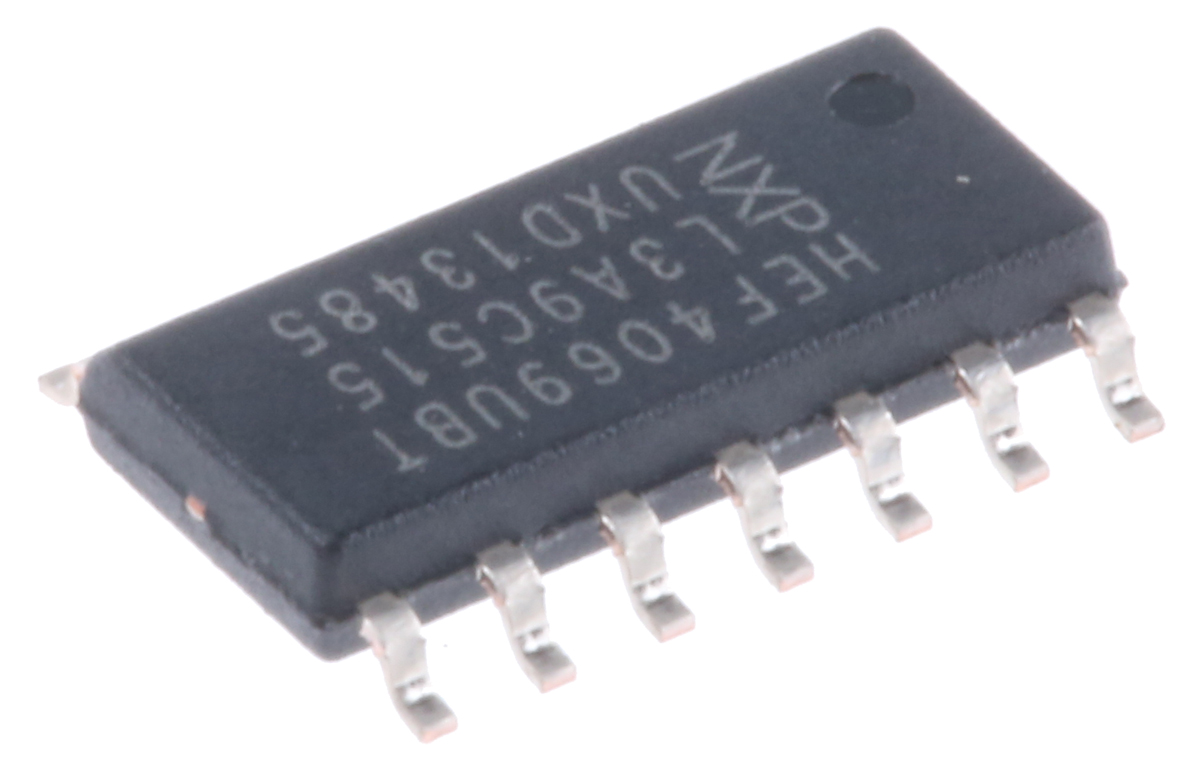

NXP HEF4069UBT,652, Hex Inverter, 3 → 15 V, 14-Pin SOIC
Product Information
Maximum Low Level Output Current:
4.2mA
Maximum High Level Output Current:
-4.2mA
Dimensions:
8.75 x 4 x 1.45mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
25 ns @ 15 V, 40 ns @ 10 V, 90 ns @ 5 V
Minimum Operating Supply Voltage:
3 V
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Logic Family:
4000
Height:
1.45mm
Width:
4mm
Length:
8.75mm
Package Type:
SOIC
Number of Elements per Chip:
6
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Maximum Operating Temperature:
+125 °C
Pin Count:
14
Maximum Operating Supply Voltage:
15 V
Checking for live stock
FAQs
Yes. You can also search HEF4069UBT,652 on website for other similar products.
We accept all major payment methods for all products including ET16800050. Please check your shopping cart at the time of order.
You can order Nexperia brand products with HEF4069UBT,652 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Inverters ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP HEF4069UBT,652, Hex Inverter, 3 → 15 V, 14-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on NXP HEF4069UBT,652, Hex Inverter, 3 → 15 V, 14-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800050 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800050.
Yes. We ship HEF4069UBT,652 Internationally to many countries around the world.
This is NXP Hex Inverter 3 → 15 V 14-Pin SOIC manufactured by Nexperia. The manufacturer part number is HEF4069UBT,652. On the other hand, it is featured with 4.2ma of max. low level output current. While a -4.2ma of maximum high level output current. The given dimensions of the product include 8.75 x 4 x 1.45mm. The product is available in surface mount configuration. It provides up to 25 ns @ 15 v, 40 ns @ 10 v, 90 ns @ 5 v maximum propagation delay time. While its minimum operating supply voltage is 3 v. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is 4000. In addition, the height is 1.45mm. Furthermore, the product is 4mm wide. Its accurate length is 8.75mm. The package is a sort of soic. It consists of 6 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It has a maximum operating temperature of +125 °c. It contains 14 pins. It has 15 v maximum operating supply voltage.
