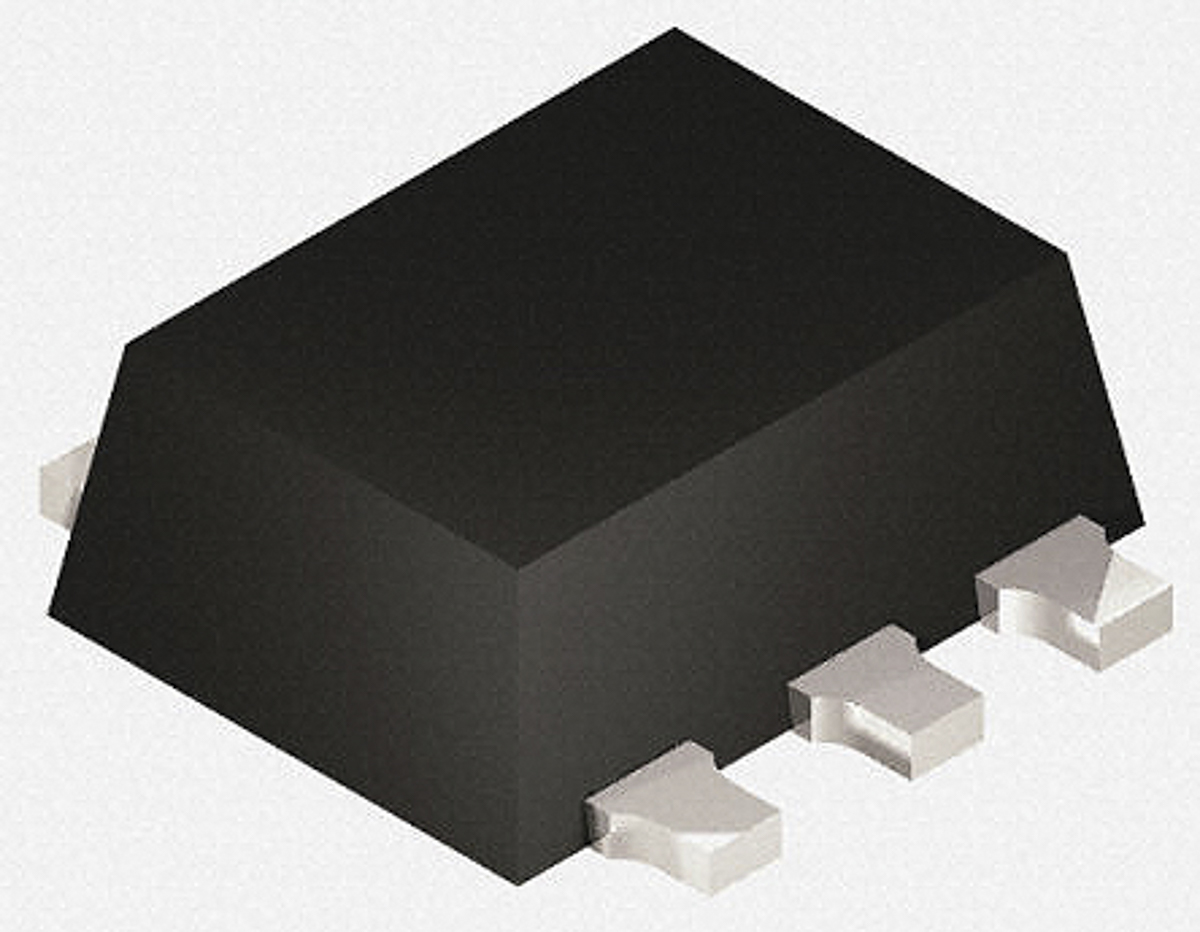

Toshiba TC7SZ14FE Schmitt Trigger Inverter, 5-Pin SOT-553
Product Information
Dimensions:
1.6 x 1.2 x 0.55mm
Logic Family:
LMOS
Width:
1.2mm
Input Type:
CMOS
Automotive Standard:
AEC-Q100
Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Maximum Propagation Delay Time @ Maximum CL:
8.5 ns @ 50 pF
Minimum Operating Supply Voltage:
1.65 V
Output Type:
Current
Package Type:
SOT-553
Number of Elements per Chip:
1
Maximum Operating Temperature:
+125 °C
Length:
1.6mm
Pin Count:
5
Mounting Type:
Surface Mount
Maximum Operating Supply Voltage:
5.5 V
Logic Function:
Inverter
Height:
0.55mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search TC7SZ14FE on website for other similar products.
We accept all major payment methods for all products including ET16797857. Please check your shopping cart at the time of order.
You can order Toshiba brand products with TC7SZ14FE directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Inverters ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Toshiba TC7SZ14FE Schmitt Trigger Inverter, 5-Pin SOT-553. You can also check on our website or by contacting our customer support team for further order details on Toshiba TC7SZ14FE Schmitt Trigger Inverter, 5-Pin SOT-553.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16797857 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Toshiba" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16797857.
Yes. We ship TC7SZ14FE Internationally to many countries around the world.
This is Schmitt Trigger Inverter 5-Pin SOT-553 manufactured by Toshiba. The manufacturer part number is TC7SZ14FE. The given dimensions of the product include 1.6 x 1.2 x 0.55mm. The logic family is lmos. Furthermore, the product is 1.2mm wide. It carries cmos input type. The product complies with automotive standard - aec-q100. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. It provides up to 8.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Furthermore, it has acurrent output. The package is a sort of sot-553. It consists of 1 elements per chip. It has a maximum operating temperature of +125 °c. Its accurate length is 1.6mm. It contains 5 pins. The product is available in surface mount configuration. It has 5.5 v maximum operating supply voltage. The primary function of logic includes inverter. In addition, the height is 0.55mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
