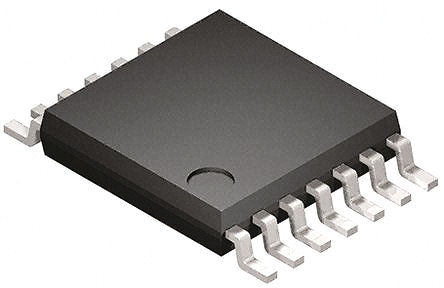

This is Hex Schmitt Trigger Push-Pull CMOS Inverter 2 → 5.5 V 14-Pin TSSOP manufactured by DiodesZetex. The manufacturer part number is 74LV04AT14-13. On the other hand, it is featured with 12ma of max. low level output current. While a -12ma of maximum high level output current. It has 5.5 v maximum operating supply voltage. The given dimensions of the product include 5.1 x 4.5 x 1.05mm. The product is available in surface mount configuration. It provides up to 8.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Furthermore, it has apush-pull output. In addition, the height is 1.05mm. Furthermore, the product is 4.5mm wide. Its accurate length is 5.1mm. The package is a sort of tssop. The logic family is lv. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 14 pins. Features 50pf of propagation delay test condition. It consists of 6 elements per chip.
For more information please check the datasheets.
