Minimum CMRR:
74dB
Maximum Input Offset Voltage:
0.3mV
Typical Dual Supply Voltage:
±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Typical Gain Bandwidth Product:
1.5MHz
Dimensions:
3 x 3 x 0.85mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual, Single
Rail to Rail:
Rail to Rail Output
Height:
0.85mm
Typical Single Supply Voltage:
12 V, 15 V, 18 V, 24 V, 28 V, 5 V, 9 V
Width:
3mm
Length:
3mm
Package Type:
MSOP
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
8

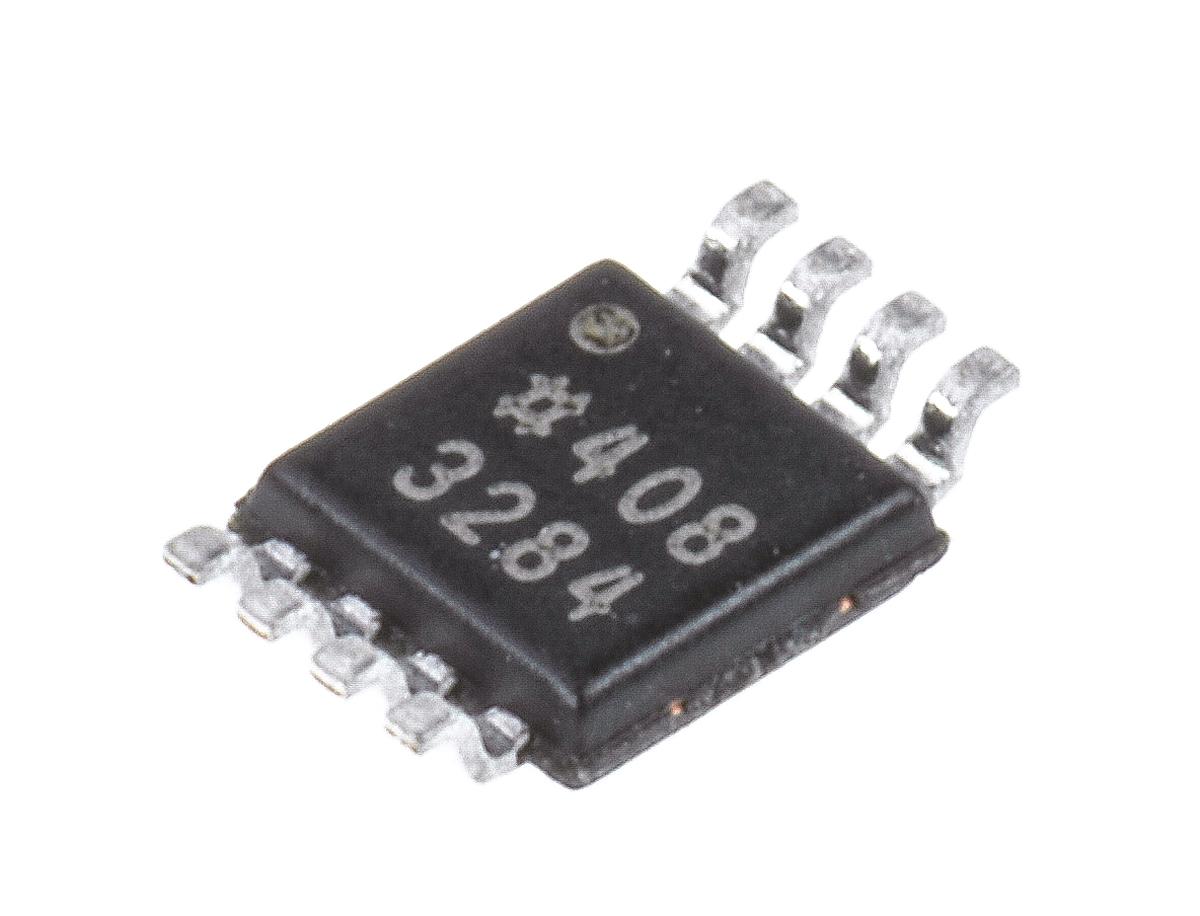

This is Instrumentation Amplifier 0.3mV Offset 1.5MHz R-RO 4.5 → 36 V 8-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD8220ARMZ. It is designed with a minimum 74db CMRR . It has a maximum 0.3mv input offset voltage . While ±12 v, ±15 v, ±3 v, ±5 v, ±9 v is the typical dual supply voltage. Features 1.5mhz typical gain bandwidth. The given dimensions of the product include 3 x 3 x 0.85mm. The product is available in surface mount configuration. It is a type of dual, single power supply. Rail to rail options include rail to rail output. In addition, the height is 0.85mm. It has a typical single supply voltage of 12 v, 15 v, 18 v, 24 v, 28 v, 5 v, 9 v. Furthermore, the product is 3mm wide. Its accurate length is 3mm. The package is a sort of msop. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It contains 8 pins.
