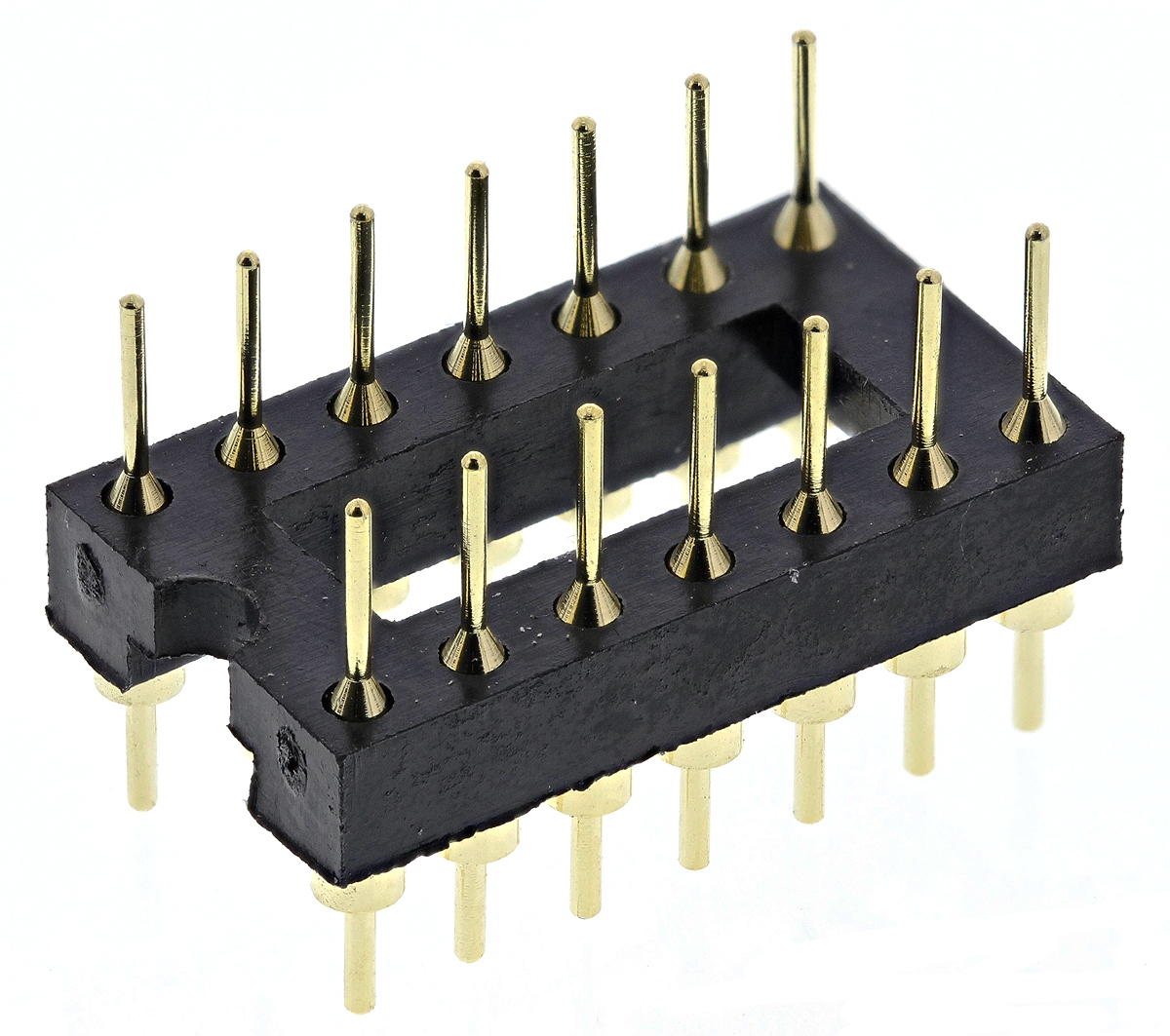

ASSMANN WSW Straight Through Hole Mount 2.54mm Pitch IC Socket Adapter, 14 Pin Male DIP to 14 Pin Male DIP

AR-14-ST-T ASSMANN WSW Straight Through Hole Mount 2.54mm Pitch IC Socket Adapter, 14 Pin Male DIP to 14 Pin Male DIP
AR 14-ST/T
AR-14-ST-T ASSMANN WSW Straight Through Hole Mount 2.54mm Pitch IC Socket Adapter, 14 Pin Male DIP to 14 Pin Male DIP
ASSMANN WSW

Product Information

End 1 Type:
DIP
End 1 Number of Contacts:
14
Current Rating:
3A
Mounting Type:
Through Hole
Voltage Rating:
100 V ac
End 2:
14 Pin Male DIP
End 1 Gender:
Male
Body Orientation:
Straight
End 1:
14 Pin Male DIP
End 2 Gender:
Male
End 2 Number of Contacts:
14
Housing Material:
PBT
End 2 Type:
DIP
Contact Plating:
Gold over Nickel
Pitch:
2.54mm
Contact Material:
Brass
RoHs Compliant
Checking for live stock

The ASSMANN WSW AR 14‑ST/T is a through‑hole mount adapter socket with a 2.54 mm pitch, designed to convert a 14‑pin male DIP to a 14‑pin male DIP configuration. Featuring straight orientation and reliable connection geometry, this adapter supports currents up to 3 A at 100 V AC and utilises brass contacts with gold‑over‑nickel plating for improved signal integrity and corrosion resistance.

Unique Features and Benefits of the ASSMANN WSW IC Adapter Socket

  • Straight through‑hole mount design enables secure PCB installation.
  • 2.54 mm (0.1″) pitch matches standard DIP layouts for interoperability.
  • 14 contacts on each side support full‑width conversion between DIP headers.
  • Brass contact material with gold/nickel plating improves longevity and conductivity.
  • Rated for 3 A at 100 V AC for typical signal‑level applications.
  • Compatible with standard male DIP headers for flexible board‑to‑board or adapter use.

Engineered for Reliable Interconnection

This adapter socket ensures dependable alignment and signal transition in test fixtures, prototyping environments, and custom boards. The straight male‑to‑male layout simplifies routing or header conversion without altering form factor. The PBT housing maintains dimensional stability under thermal and mechanical stress, while the plated contacts help prevent oxidation for consistent performance across multiple insertion cycles.

Broad Range Application

  • Adapting DIP‑14 modules to alternate header layouts in prototyping and evaluation.
  • Interface boards requiring male‑to‑male DIP14 passthrough for test jigs.
  • Signal conversion or header rearrangement in control systems and embedded modules.
  • Design work involving legacy DIP components and modern header assemblies.
  • Low‑current, low‑voltage electronic assemblies.
