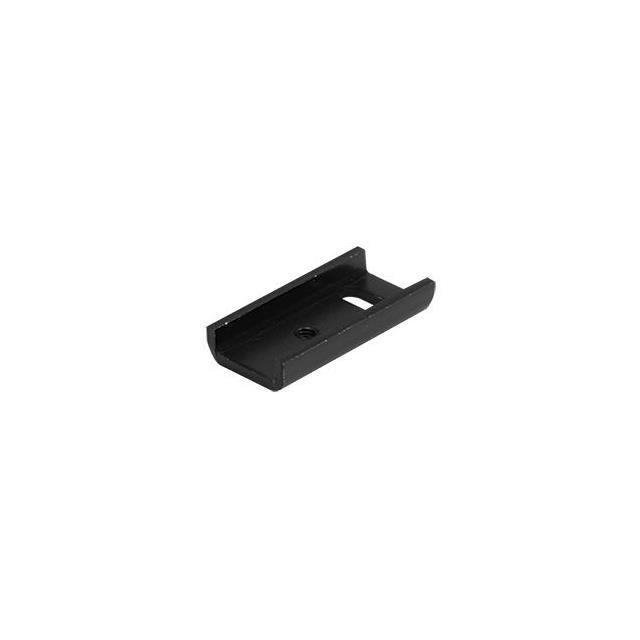

CUI Devices HSE10-B20-NP Heat Sink

Enrgtech Part No: ET23265783
|
Manufacturer Part No:
HSE10-B20-NP
|
Manufacturer: CUI Devices

Product Information

Material Finish:

Black Anodized

HTSUS:

8473.30.5100

RoHS Status:

ROHS3 Compliant

Attachment Method:

Bolt On

Width:

0.472" (12.00mm)

Fin Height:

0.177" (4.50mm)

Type:

Top Mount

Power Dissipation @ Temperature Rise:

1.95W @ 75°C

Material:

Aluminum Alloy

REACH Status:

REACH Unaffected

Package:

Bag

Thermal Resistance @ Natural:

38.45°C/W

Pre-order available

Ask for lead time

Bag

Quantity

Unit Price (ex VAT)

Price

Mfr Part No:

HSE10-B20-NP

Seller:

CUI Devices

Origin:

Warranty:

Manufacturer

Data Code:

ET23265783

Order Today!

From: EU/US

Quantity Quantity

The CUI Devices (Same Sky) HSE10-B20-NP is a high-efficiency extruded heat sink designed for TO-218 and TO-220 packages. This lightweight aluminium component facilitates superior thermal management by dissipating excess heat away from critical semiconductors. Its compact profile makes it perfect for densely packed printed circuit boards. The black anodised finish improves radiative cooling while providing a sleek, professional appearance. This heat sink ensures that your electronic components operate within safe temperature limits to prevent premature failure.

Top Benefits for Users

This CUI Devices HSE10-B20-NP heat sink significantly extends the lifespan of power semiconductors. It maintains device stability during high-load operations.

Compact design fits perfectly in space-constrained electronic assemblies.
Black anodised aluminium offers enhanced thermal performance and durability.
Simple bolt-on attachment ensures a secure and reliable installation.

Key Design Features & Technical Specifications

Package Cooled: TO-218, TO-220
Material: Aluminium Alloy (1050)
Finish: Black Anodised
Attachment Method: Bolt-on (M2.5 hole)
Thermal Resistance: 41.2°C/W (Natural Convention @ 1W)
Weight: 1.7g
Dimensions: 20mm x 15mm x 10mm.
