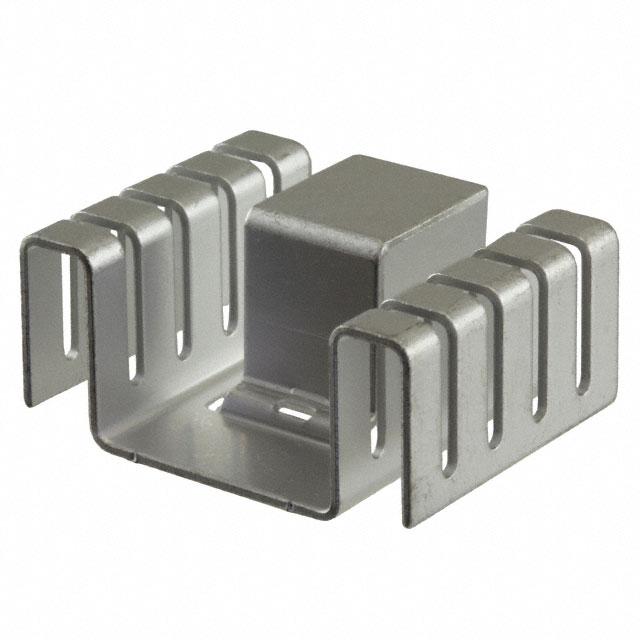

Aavid, Thermal Division of Boyd Corporation 7109D/TRG
Product Information
Material Finish:
Tin
HTSUS:
8473.30.5100
RoHS Status:
ROHS3 Compliant
Attachment Method:
SMD Pad
Width:
1.000" (25.40mm)
Fin Height:
0.450" (11.43mm)
Type:
Top Mount
Power Dissipation @ Temperature Rise:
2.0W @ 30°C
Material:
Copper
Shape:
Rectangular, Fins
Package:
Tape & Reel (TR)
Thermal Resistance @ Natural:
11.00°C/W
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
0.763" (19.38mm)
standardLeadTime:
7 Weeks
Diameter:
-
Series:
-
Package Cooled:
TO-263 (D²Pak)
Thermal Resistance @ Forced Air Flow:
3.00°C/W @ 300 LFM
Base Product Number:
7109
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 7109D/TRG on website for other similar products.
We accept all major payment methods for all products including ET16679556. Please check your shopping cart at the time of order.
You can order Aavid, Thermal Division of Boyd Corporation brand products with 7109D/TRG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Heat Sinks category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Aavid, Thermal Division of Boyd Corporation 7109D/TRG. You can also check on our website or by contacting our customer support team for further order details on Aavid, Thermal Division of Boyd Corporation 7109D/TRG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16679556 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Aavid, Thermal Division of Boyd Corporation" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16679556.
Yes. We ship 7109D/TRG Internationally to many countries around the world.
This is manufactured by Aavid, Thermal Division of Boyd Corporation. The manufacturer part number is 7109D/TRG. It is nicely plated with splendid finishing material, such as tin. It is assigned with possible HTSUS value of 8473.30.5100. The product is rohs3 compliant. It employs the smd pad method for attachment. Furthermore, the product is 1.000" (25.40mm) wide. It also has a 0.450" (11.43mm) fin height. It comes in top mount configuration. The given power dissipation and temperature rise include 2.0w @ 30°c. The product is made from highly stable and reliable copper. It is a rectangular, fins product with unique specifications. It is shipped in tape & reel (tr) package . The natural thermal resistance of the product includes 11.00°c/w. Its typical moisture sensitivity level is not applicable. Its accurate length is 0.763" (19.38mm). It has a long 7 weeks standard lead time. to-263 (d²pak) is the value of product cooled package. 3.00°c/w @ 300 lfm is the given thermal resistance at forced air flow. Moreover, it corresponds to 7109, a base product number of the product. The product is designated with the ear99 code number.
