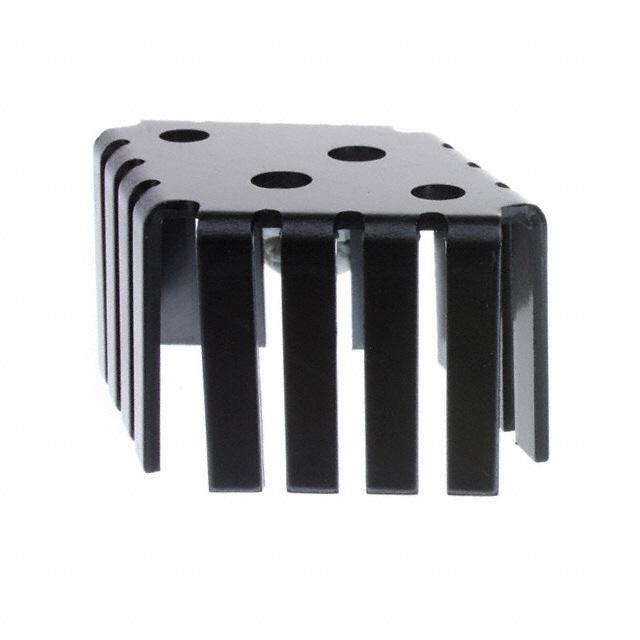

Aavid, Thermal Division of Boyd Corporation 501503B00000G

501503B00000G Aavid, Thermal Division of Boyd Corporation
501503B00000G
Aavid, Thermal Division of Boyd Corporation

Product Information

Material Finish:
Black Anodized
HTSUS:
8473.30.5100
RoHS Status:
ROHS3 Compliant
Attachment Method:
Bolt On
Width:
1.400" (35.56mm)
Fin Height:
1.000" (25.40mm)
Type:
Board Level
Power Dissipation @ Temperature Rise:
5.0W @ 40°C
Material:
Aluminum
REACH Status:
REACH Unaffected
Package:
Bag
Thermal Resistance @ Natural:
8.40°C/W
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
1.880" (47.75mm)
Thermal Resistance @ Forced Air Flow:
2.00°C/W @ 500 LFM
standardLeadTime:
7 Weeks
Diameter:
-
Series:
-
Package Cooled:
TO-3
Shape:
Rhombus
Base Product Number:
501503
ECCN:
EAR99
Checking for live stock

This is manufactured by Aavid, Thermal Division of Boyd Corporation. The manufacturer part number is 501503B00000G. It is nicely plated with splendid finishing material, such as black anodized. It is assigned with possible HTSUS value of 8473.30.5100. The product is rohs3 compliant. It employs the bolt on method for attachment. Furthermore, the product is 1.400" (35.56mm) wide. It also has a 1.000" (25.40mm) fin height. It comes in board level configuration. The given power dissipation and temperature rise include 5.0w @ 40°c. The product is made from highly stable and reliable aluminum. In addition, it is reach unaffected. It is shipped in bag package . The natural thermal resistance of the product includes 8.40°c/w. Its typical moisture sensitivity level is not applicable. Its accurate length is 1.880" (47.75mm). 2.00°c/w @ 500 lfm is the given thermal resistance at forced air flow. It has a long 7 weeks standard lead time. to-3 is the value of product cooled package. It is a rhombus product with unique specifications. Moreover, it corresponds to 501503, a base product number of the product. The product is designated with the ear99 code number.
