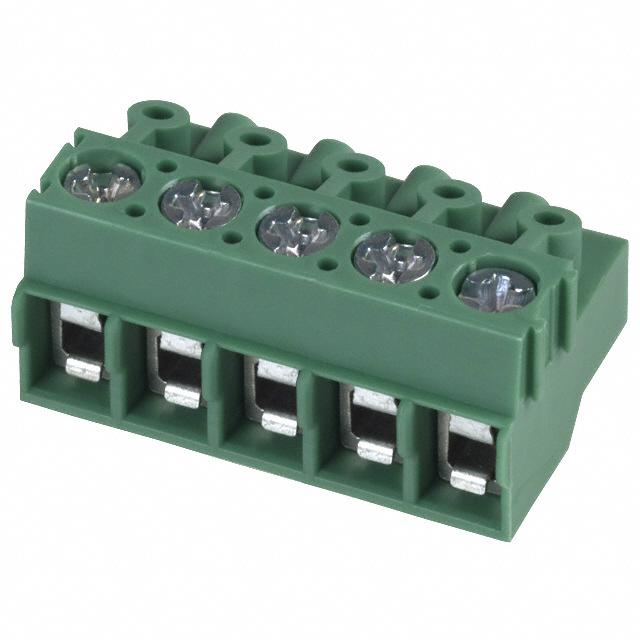

Phoenix Contact 1934890
Product Information
Series:
PT 1.5/ 5-PVH-5.0
Mounting Type:
Through Hole
Gender:
Female
Body Orientation:
Straight
Length:
25mm
Width:
15mm
Depth:
11.4mm
Number of Rows:
1
Pitch:
5mm
Number of Contacts:
5
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M2.6
Wire Strip Length:
5mm
Type:
Plug for Unshrouded Header
Number of Positions:
5
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
90°
Insulation Height:
0.449" (11.40mm)
REACH Status:
REACH Unaffected
edacadModel:
1934890 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/568647
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Contact Tail Length:
-
Voltage - UL:
300 V
Torque - Screw:
0.35-0.4 Nm (3.1-3.5 Lb-In)
standardLeadTime:
12 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON PT
Positions Per Level:
5
Header Orientation:
-
Current - UL:
15 A
Wire Gauge or Range - AWG:
12-26 AWG
Pitch:
0.197" (5.00mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1934890 on website for other similar products.
We accept all major payment methods for all products including ET11072509. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1934890 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1934890. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1934890.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11072509 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11072509.
Yes. We ship 1934890 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1934890. The product pt 1.5/ 5-pvh-5.0, is a highly preferred choice for users. The product is available in through hole configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. Its accurate length is 25mm. Furthermore, the product is 15mm wide. The product comes in 11.4mm depth. It comes in 1 of rows. Moreover, the product is 5mm. The product contains 5 contacts. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m2.6. The typical length of the wire strip is 5mm. It comes in plug for unshrouded header configuration. The product carries possible position value of 5. A 0.2-2.5mm² of wire gauge. It also a 90° plug wire entry. 0.449" (11.40mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 12a. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.35-0.4 nm (3.1-3.5 lb-in). It has a long 12 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon pt, is a highly preferred choice for users. It has 5 positions each level. The typical current includes 15 a. While 12-26 awg is its range or wire gauge. Moreover, the product is 0.197" (5.00mm). The product carries 1 levels. The product is designated with the ear99 code number.
