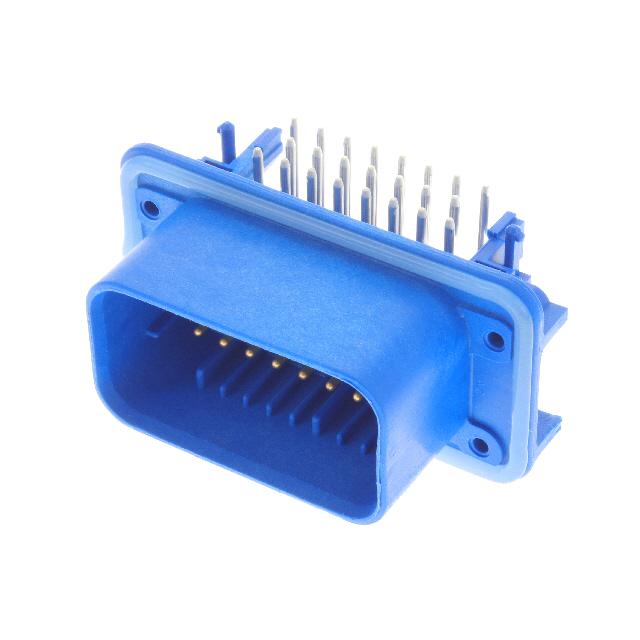

TE Connectivity Deutsch Connectors 1-776087-5

1-776087-5 TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors

Product Information

Contact Finish - Mating:
Gold-Palladium
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
23
Contact Finish - Post:
-
edacadModel:
1-776087-5 Models
Overall Contact Length:
-
title:
1-776087-5
Insulation Height:
-
Insulation Color:
Blue
REACH Status:
REACH Affected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, Industrial
Number of Rows:
3
Material Flammability Rating:
-
edacadModelUrl:
/en/models/352727
Contact Shape:
Circular
Mated Stacking Heights:
-
Voltage Rating:
250VAC
Row Spacing - Mating:
0.157" (4.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.157" (4.00mm)
Ingress Protection:
-
Features:
Board Guide, Sealed
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
AMPSEAL
Packaging:
Bulk
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
776087
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Deutsch Connectors. The manufacturer part number is 1-776087-5. It has nice contact finishing of gold-palladium. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 23. In addition, blue is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, industrial. It comes in 3 of rows. It has a typical circular shape. Moreover, the product has a nominal 250vac voltage rating. It carries 0.157" (4.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is varies by wire gauge. It has 0.157" (4.00mm) of pitch-mating value. The splendid features of the product include board guide, sealed. The product is available in panel mount, through hole, right angle configuration. The product ampseal, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 776087, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Additional molding and plating capabilities 17/APR/2023(PCN Assembly/Origin)
pdf icon
1-77yyyy-(y) standardize plating process 17/FEB/2020(PCN Design/Specification)
pdf icon
y-77yyyy-y - design chg 13/JAN/2021(PCN Design/Specification)
pdf icon
1-776087-5(Datasheets)
