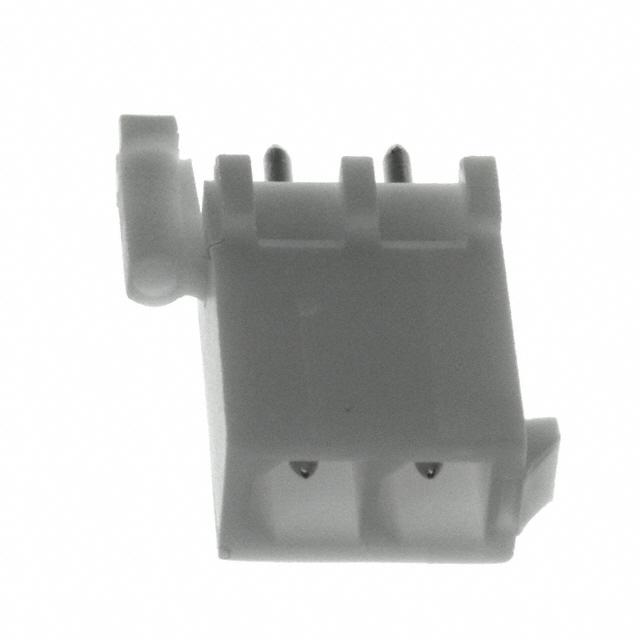

TE Connectivity AMP Connectors 770872-1
Product Information
Contact Finish - Mating:
Tin-Lead
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-20°C ~ 85°C
Contact Finish Thickness - Post:
150.0µin (3.81µm)
Number of Positions:
2
Contact Finish - Post:
Tin-Lead
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.531" (13.50mm)
Voltage Rating:
600VAC
REACH Status:
REACH Affected
edacadModel:
770872-1 Models
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/295137
Insulation Color:
White
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
150.0µin (3.81µm)
Fastening Type:
Locking Ramp
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.175" (4.45mm)
Pitch - Mating:
0.163" (4.14mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole
Series:
Mini-Universal MATE-N-LOK
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
770872
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 770872-1 on website for other similar products.
We accept all major payment methods for all products including ET11131054. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 770872-1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 770872-1. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 770872-1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11131054 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11131054.
Yes. We ship 770872-1 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 770872-1. It has nice contact finishing of tin-lead. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -20°c ~ 85°c operating temperature range. Additionally, it features 150.0µin (3.81µm) of post thickness. The product carries possible position value of 2. It has possible tin-lead contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.531" (13.50mm) of insulation height. Moreover, the product has a nominal 600vac voltage rating. In addition, it is reach affected. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, white is the insulation color of the product. It has a typical circular shape. It has a robust polyamide (pa), nylon insulation material. It is shipped in bulk package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 150.0µin (3.81µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is varies by wire gauge. 0.175" (4.45mm) is the given possible contact length (post) values. It has 0.163" (4.14mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole configuration. The product mini-universal mate-n-lok, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 770872, a base product number of the product. The product is designated with the ear99 code number.
