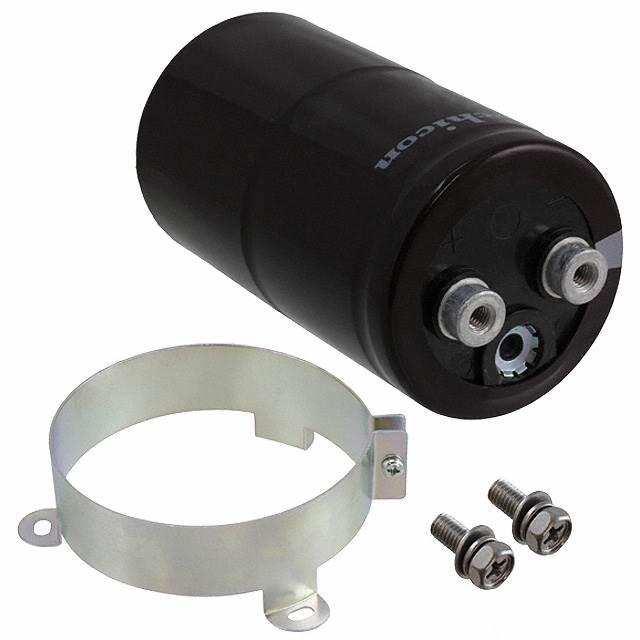

Nichicon LQR2G182MSEF
Product Information
Diameter:
51mm
Ripple Current:
9.1A
Dimensions:
51 (Dia.) x 90mm
Mounting Type:
Screw Terminal
Series:
QR
Height:
90mm
Capacitance:
1800µF
Voltage:
400V dc
Leakage Current:
2540 μA
Lifetime:
5000h
Maximum Operating Temperature:
+85°C
Tolerance:
±20%
Minimum Operating Temperature:
-25°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0055
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
1800 µF
Operating Temperature:
-25°C ~ 85°C
Package / Case:
Radial, Can - Screw Terminals
Tolerance:
±20%
Voltage - Rated:
400 V
Height - Seated (Max):
3.661" (93.00mm)
Ripple Current @ High Frequency:
12.74 A @ 10 kHz
REACH Status:
REACH Affected
Ripple Current @ Low Frequency:
9.1 A @ 120 Hz
edacadModel:
LQR2G182MSEF Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/2549316
Package:
Bulk
Size / Dimension:
2.008" Dia (51.00mm)
standardLeadTime:
51 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Series:
LQR
Lifetime @ Temp.:
5000 Hrs @ 85°C
Lead Spacing:
0.866" (22.00mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search LQR2G182MSEF on website for other similar products.
We accept all major payment methods for all products including ET11497780. Please check your shopping cart at the time of order.
You can order Nichicon brand products with LQR2G182MSEF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon LQR2G182MSEF. You can also check on our website or by contacting our customer support team for further order details on Nichicon LQR2G182MSEF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11497780 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11497780.
Yes. We ship LQR2G182MSEF Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is LQR2G182MSEF. Its diameter is 51mm. Furthermore, 9.1a is the ripple current. The given dimensions of the product include 51 (dia.) x 90mm. The product is available in screw terminal configuration. The product qr, is a highly preferred choice for users. In addition, the height is 90mm. It provides a 1800µf of capacitance value. It carries a 400v dc of voltage. It harbors 2540 μa of leakage current. It provides a long-lasting service for a period of 5000h. It has a maximum operating temperature of +85°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -25°c. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0055. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 1800 µf of capacitance value. The product has -25°c ~ 85°c operating temperature range. Moreover, the product comes in radial, can - screw terminals. It also exhibits voltage rating of 400 v. It has the maximum seated height of 3.661" (93.00mm). Additionally, it carries a ripple current and high frequency of 12.74 a @ 10 khz. In addition, it is reach affected. Its ripple current at low frequency is 9.1 a @ 120 hz. The product is widely employed in general purpose. It is shipped in bulk package . The product's diameters include 2.008" dia (51.00mm). It has a long 51 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. The product lqr, is a highly preferred choice for users. This product offers longer life span for 5000 hrs @ 85°c. It is assigned with 0.866" (22.00mm) of lead spacing. The product is designated with the ear99 code number.
