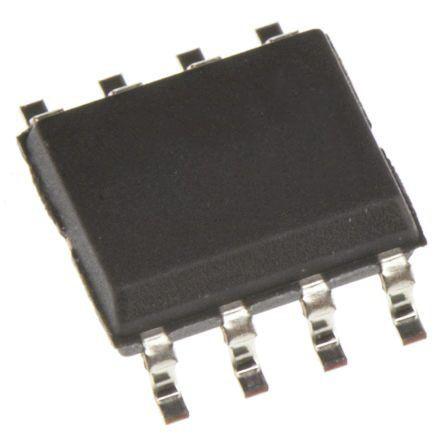

Maxim MAX515ESA+, DAC, 8-Pin SOIC

MAX515ESA- Maxim MAX515ESA+, DAC, 8-Pin SOIC
Maxim

Product Information

Voltage Reference:
External
Integral Nonlinearity Error:
±0.5LSB
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
25 (Typ.)µs
Typical Single Supply Voltage:
4.5 → 5.5 V
Height:
1.5mm
Width:
4mm
Length:
5mm
Package Type:
SOIC
Architecture:
R-2R
Output Polarity:
Bipolar, Unipolar
Maximum Operating Temperature:
+85 °C
Resolution:
10 bit
Pin Count:
8
RoHs Compliant
Checking for live stock

This is DAC 8-Pin SOIC manufactured by Maxim. The manufacturer part number is MAX515ESA+. The product has external voltage reference. Its integral nonlinearity error is ±0.5lsb . The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 25 (typ.)µs setting time . It has a typical single supply voltage of 4.5 → 5.5 v. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. The package is a sort of soic. The product has been designed as r-2r. It has bipolar, unipolar polarity . It has a maximum operating temperature of +85 °c. Features 10 bit resolution. It contains 8 pins.

pdf icon
MAX515ESA+ - Datasheet(Technical Reference)
