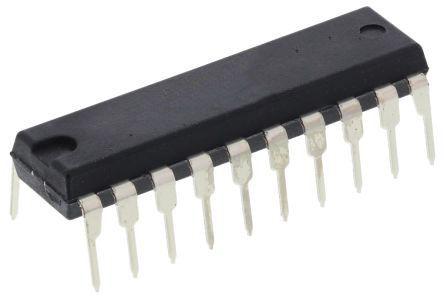

Maxim MAX506BCPP+, 4-Channel Parallel DAC, 20-Pin PDIP
Product Information
Voltage Reference:
External
Digital Interface Type:
Parallel
Dimensions:
26.54 x 7.87 x 4.45mm
Mounting Type:
Through Hole
Number of DAC Channels:
4
Power Supply Type:
Single
Minimum Operating Temperature:
0 °C
Maximum Settling Time:
6µs
Typical Single Supply Voltage:
4.5 → 5.5 V
Height:
4.45mm
Width:
7.87mm
Length:
26.54mm
Full Scale Error:
±14mV
Package Type:
PDIP
Architecture:
R-2R
Output Polarity:
Bipolar, Unipolar
Maximum Operating Temperature:
+70 °C
Resolution:
8 bit
Pin Count:
20
Checking for live stock
FAQs
Yes. You can also search MAX506BCPP+ on website for other similar products.
We accept all major payment methods for all products including ET18608122. Please check your shopping cart at the time of order.
You can order Maxim brand products with MAX506BCPP+ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in General Purpose DACs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Maxim MAX506BCPP+, 4-Channel Parallel DAC, 20-Pin PDIP. You can also check on our website or by contacting our customer support team for further order details on Maxim MAX506BCPP+, 4-Channel Parallel DAC, 20-Pin PDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18608122 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Maxim" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18608122.
Yes. We ship MAX506BCPP+ Internationally to many countries around the world.
This is 4-Channel Parallel DAC 20-Pin PDIP manufactured by Maxim. The manufacturer part number is MAX506BCPP+. The product has external voltage reference. Additionally, the product has a/an parallel type digital interface . The given dimensions of the product include 26.54 x 7.87 x 4.45mm. The product is available in through hole configuration. Additionally, it includes 4 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is 0 °c. The product has a maximum 6µs setting time . It has a typical single supply voltage of 4.5 → 5.5 v. In addition, the height is 4.45mm. Furthermore, the product is 7.87mm wide. Its accurate length is 26.54mm. It has a full scale error of ±14mv . The package is a sort of pdip. The product has been designed as r-2r. It has bipolar, unipolar polarity . It has a maximum operating temperature of +70 °c. Features 8 bit resolution. It contains 20 pins.
