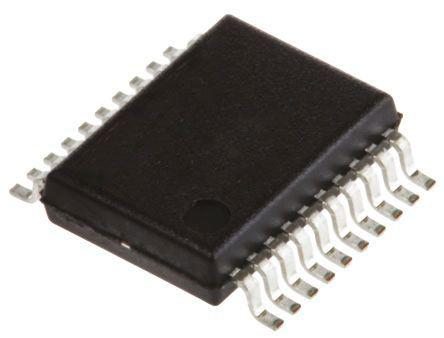

Maxim MAX5250BCAP+, 4-Channel Serial DAC, 20-Pin SSOP

MAX5250BCAP- Maxim MAX5250BCAP+, 4-Channel Serial DAC, 20-Pin SSOP
Maxim

Product Information

Voltage Reference:
External
Integral Nonlinearity Error:
±1LSB
Digital Interface Type:
SPI Serial
Dimensions:
7.33 x 5.38 x 1.78mm
Mounting Type:
Surface Mount
Number of DAC Channels:
4
Power Supply Type:
Single
Minimum Operating Temperature:
0 °C
Maximum Settling Time:
10µs
Typical Single Supply Voltage:
4.5 → 5.5 V
Height:
1.78mm
Width:
5.38mm
Length:
7.33mm
Package Type:
SSOP
Architecture:
R-2R
Output Polarity:
Bipolar, Unipolar
Maximum Operating Temperature:
+70 °C
Resolution:
10 bit
Pin Count:
20
RoHs Compliant
Checking for live stock

This is 4-Channel Serial DAC 20-Pin SSOP manufactured by Maxim. The manufacturer part number is MAX5250BCAP+. The product has external voltage reference. Its integral nonlinearity error is ±1lsb . Additionally, the product has a/an spi serial type digital interface . The given dimensions of the product include 7.33 x 5.38 x 1.78mm. The product is available in surface mount configuration. Additionally, it includes 4 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is 0 °c. The product has a maximum 10µs setting time . It has a typical single supply voltage of 4.5 → 5.5 v. In addition, the height is 1.78mm. Furthermore, the product is 5.38mm wide. Its accurate length is 7.33mm. The package is a sort of ssop. The product has been designed as r-2r. It has bipolar, unipolar polarity . It has a maximum operating temperature of +70 °c. Features 10 bit resolution. It contains 20 pins.

pdf icon
MAX5250BCAP+ - Datasheet(Technical Reference)
