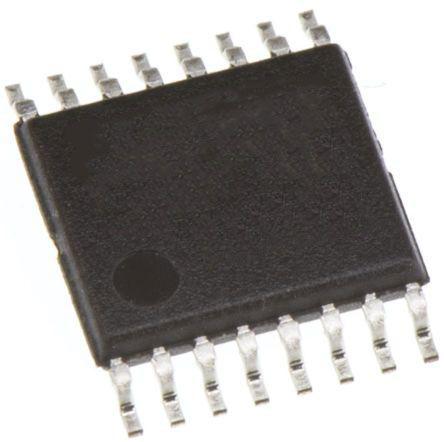

Maxim MAX5102BEUE+, 2-Channel Parallel DAC, 16-Pin TSSOP

MAX5102BEUE- Maxim MAX5102BEUE+, 2-Channel Parallel DAC, 16-Pin TSSOP
Maxim

Product Information

Voltage Reference:
External
Integral Nonlinearity Error:
±2LSB
Digital Interface Type:
Parallel
Dimensions:
5.1 x 4.5 x 0.95mm
Mounting Type:
Surface Mount
Number of DAC Channels:
2
Power Supply Type:
Single
Maximum Settling Time:
6µs
Typical Single Supply Voltage:
2.7 → 5.5 V
Height:
0.95mm
Width:
4.5mm
Length:
5.1mm
Package Type:
TSSOP
Architecture:
Resistor String
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Resolution:
8 bit
Pin Count:
16
RoHs Compliant
Checking for live stock

This is 2-Channel Parallel DAC 16-Pin TSSOP manufactured by Maxim. The manufacturer part number is MAX5102BEUE+. The product has external voltage reference. Its integral nonlinearity error is ±2lsb . Additionally, the product has a/an parallel type digital interface . The given dimensions of the product include 5.1 x 4.5 x 0.95mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. The product has a maximum 6µs setting time . It has a typical single supply voltage of 2.7 → 5.5 v. In addition, the height is 0.95mm. Furthermore, the product is 4.5mm wide. Its accurate length is 5.1mm. The package is a sort of tssop. The product has been designed as resistor string. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. Features 8 bit resolution. It contains 16 pins.
