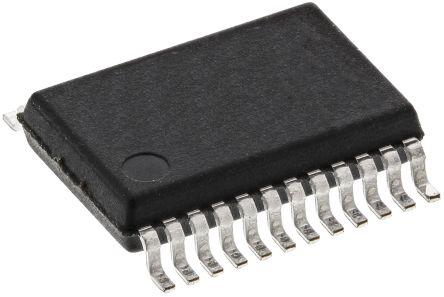

Maxim MAX505ACAG+, 4-channel 8 bit Parallel DAC, 24-Pin SSOP
Product Information
Integral Nonlinearity Error:
±1LSB
Dimensions:
8.33 x 5.38 x 1.78mm
Resolution:
8 bit
Width:
5.38mm
Digital Interface Type:
Parallel
Number of DAC Channels:
4
Power Supply Type:
Dual, Single
Package Type:
SSOP
Maximum Operating Temperature:
+70 °C
Typical Single Supply Voltage:
5 V
Full Scale Error:
±14mV
Architecture:
R-2R
Output Polarity:
Unipolar
Maximum Settling Time:
6µs
Pin Count:
24
Typical Dual Supply Voltage:
±5V
Mounting Type:
Surface Mount
Length:
8.33mm
Height:
1.78mm
Minimum Operating Temperature:
0 °C
Voltage Reference:
External
Checking for live stock
FAQs
Yes. You can also search MAX505ACAG+ on website for other similar products.
We accept all major payment methods for all products including ET16775682. Please check your shopping cart at the time of order.
You can order Maxim brand products with MAX505ACAG+ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in General Purpose DACs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Maxim MAX505ACAG+, 4-channel 8 bit Parallel DAC, 24-Pin SSOP. You can also check on our website or by contacting our customer support team for further order details on Maxim MAX505ACAG+, 4-channel 8 bit Parallel DAC, 24-Pin SSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16775682 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Maxim" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16775682.
Yes. We ship MAX505ACAG+ Internationally to many countries around the world.
This is 4-channel 8 bit Parallel DAC 24-Pin SSOP manufactured by Maxim. The manufacturer part number is MAX505ACAG+. Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 8.33 x 5.38 x 1.78mm. Features 8 bit resolution. Furthermore, the product is 5.38mm wide. Additionally, the product has a/an parallel type digital interface . Additionally, it includes 4 standard DAC channels . It is a type of dual, single power supply. The package is a sort of ssop. It has a maximum operating temperature of +70 °c. It has a typical single supply voltage of 5 v. It has a full scale error of ±14mv . The product has been designed as r-2r. It has unipolar polarity . The product has a maximum 6µs setting time . It contains 24 pins. While ±5v is the typical dual supply voltage. The product is available in surface mount configuration. Its accurate length is 8.33mm. In addition, the height is 1.78mm. Whereas, the minimum operating temperature of the product is 0 °c. The product has external voltage reference.
