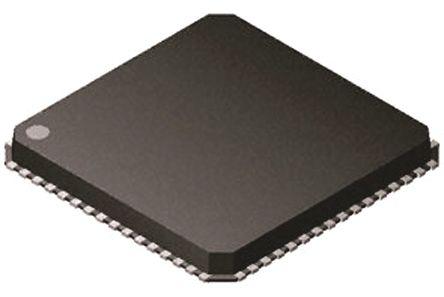

This is 4-channel 12 bit Serial DAC 64-Pin LFCSP VQ manufactured by Analog Devices. The manufacturer part number is AD5735ACPZ. Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 9.1 x 9.1 x 0.8mm. Features 12 bit resolution. Furthermore, the product is 9.1mm wide. Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . Additionally, it includes 4 standard DAC channels . It is a type of dual, single power supply. The package is a sort of lfcsp vq. It has a maximum operating temperature of +105 °c. It has a typical single supply voltage of 0 → 10 v, 0 → 5 v. It has a full scale error of ±0.13%fsr . The product has been designed as r-2r. It has bipolar, unipolar polarity . The product has a maximum 18µs setting time . It contains 64 pins. While ±10 v, ±5 v is the typical dual supply voltage. The product is available in surface mount configuration. Its accurate length is 9.1mm. In addition, the height is 0.8mm. Whereas, the minimum operating temperature of the product is -40 °c. The product has external, internal voltage reference.
ESD Control Selection Guide V1(Technical Reference)
AD5735 Quad-Channel, 12-Bit, Serial Input, 4 mA to 20 mA and Voltage Output DAC with Dynamic Power Control Data Sheet(Technical Reference)
