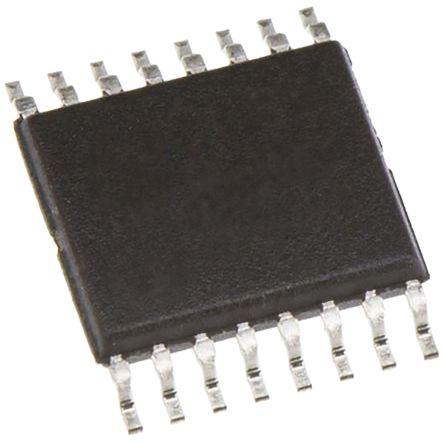

Analog Devices AD5696RARUZ, 4-channel 16 bit Serial DAC, 16-Pin TSSOP
Product Information
Voltage Reference:
Internal
Integral Nonlinearity Error:
±8LSB
Digital Interface Type:
Serial (I2C)
Dimensions:
5.1 x 4.5 x 1.05mm
Mounting Type:
Surface Mount
Number of DAC Channels:
4
Power Supply Type:
Single
Maximum Settling Time:
8µs
Typical Single Supply Voltage:
2.7 → 5.5 V
Height:
1.05mm
Width:
4.5mm
Length:
5.1mm
Full Scale Error:
±0.2%FSR
Package Type:
TSSOP
Architecture:
Resistor String
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+105 °C
Resolution:
16 bit
Pin Count:
16
Checking for live stock
FAQs
Yes. You can also search AD5696RARUZ on website for other similar products.
We accept all major payment methods for all products including ET13948521. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD5696RARUZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in General Purpose DACs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD5696RARUZ, 4-channel 16 bit Serial DAC, 16-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD5696RARUZ, 4-channel 16 bit Serial DAC, 16-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13948521 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13948521.
Yes. We ship AD5696RARUZ Internationally to many countries around the world.
This is 4-channel 16 bit Serial DAC 16-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD5696RARUZ. The product has internal voltage reference. Its integral nonlinearity error is ±8lsb . Additionally, the product has a/an serial (i2c) type digital interface . The given dimensions of the product include 5.1 x 4.5 x 1.05mm. The product is available in surface mount configuration. Additionally, it includes 4 standard DAC channels . It is a type of single power supply. The product has a maximum 8µs setting time . It has a typical single supply voltage of 2.7 → 5.5 v. In addition, the height is 1.05mm. Furthermore, the product is 4.5mm wide. Its accurate length is 5.1mm. It has a full scale error of ±0.2%fsr . The package is a sort of tssop. The product has been designed as resistor string. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +105 °c. Features 16 bit resolution. It contains 16 pins.
