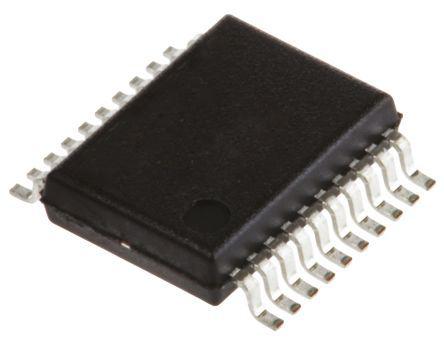

Maxim MAX146BCAP+, 12 bit ADC 8-Channel Differential, Single Ended Input, 20-Pin SSOP

MAX146BCAP- Maxim MAX146BCAP+, 12 bit ADC 8-Channel Differential, Single Ended Input, 20-Pin SSOP
Maxim

Product Information

Number of ADCs:
8
Number of Input Channels:
8
Integral Nonlinearity Error:
±1LSB
Dimensions:
7.33 x 5.38 x 1.78mm
Mounting Type:
Surface Mount
Input Signal Type:
Differential, Single Ended
Power Supply Type:
Single
Minimum Operating Temperature:
0 °C
Typical Single Supply Voltage:
2.7 → 3.6 V
Height:
1.78mm
Width:
5.38mm
Length:
7.33mm
Package Type:
SSOP
Architecture:
SAR
Input Type:
Differential, Single Ended
Sampling Rate:
133ksps
Maximum Operating Temperature:
+70 °C
Resolution:
12 bit
Pin Count:
20
RoHs Compliant
Checking for live stock

This is 12 bit ADC 8-Channel Differential Single Ended Input 20-Pin SSOP manufactured by Maxim. The manufacturer part number is MAX146BCAP+. It contains 8 ADCs . It contains 8 input channels . Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 7.33 x 5.38 x 1.78mm. The product is available in surface mount configuration. The input signal is a kind of differential, single ended signal. It is a type of single power supply. Whereas, the minimum operating temperature of the product is 0 °c. It has a typical single supply voltage of 2.7 → 3.6 v. In addition, the height is 1.78mm. Furthermore, the product is 5.38mm wide. Its accurate length is 7.33mm. The package is a sort of ssop. The product has been designed as sar. It carries differential, single ended input type. It has about 133ksps sampling rate . It has a maximum operating temperature of +70 °c. Features 12 bit resolution. It contains 20 pins.

pdf icon
MAX146BCAP+ - Datasheet(Technical Reference)
